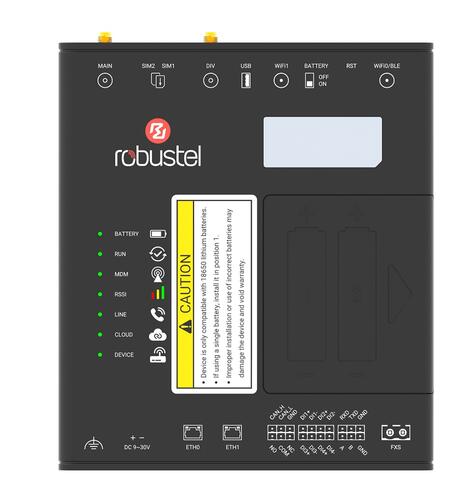

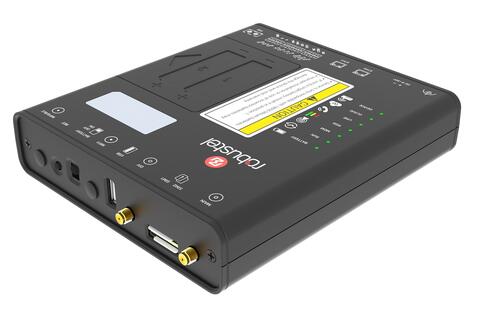

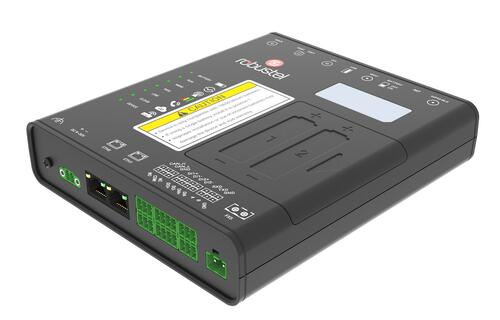

Robustel B126003 LTE Router with built-in battery, FXS Port, Voice over LTE
Robustel’s EV8100 is an advanced LTE gateway that supports VolP and VoLTE.
Developed primarily as an elevator voice gateway to enhance safety and reliability in vertical transportation systems, this can also be used in other applications such as PSTN failover for voice systems, alarms, intercoms, etc.
As an elevator gateway, it enables seamless communication between a cellular network and the elevator’s intercom system. This next-generation device offers multiple interfaces and allows for seamless remote monitoring and management of the elevator’s communication system, making it easy to address any issues or malfunctions quickly and efficiently.
With its advanced features and robust design, the EV8100 is a reliable and essential safety solution for any modern building.
The EV8100 supports Docker for easy deployment of applications and benefits from ‘RobustOS Pro’ – Robustel’s latest Linux Debian bullseye based router OS with enhanced cybersecurity, advanced GUl and a myriad of software features including VPNs, Smart Roaming, SMS remote control and more.
RCMS is Robustel’s free router monitoring service that is fully compatible with the EV8100. lt allows customers to see a location overview of their routers quickly and simply on a map. Features such as data usage, signal strength, current network and much more can then be viewed on a per router basisOver-the-air updates are supported for Firmware, router configuration and Apps serving as essential “insurance” if anything was not quite right during deployment.
You can try Robustel’s free router management platform by signing up here: https://rcms-cloud.robustel.net
Note. This model "B126003 (EV8100-A-4L-A34AU)" has no WiFi or Bluetooth. For those features, order the "B126004 (EV8100-B-4L-A34AU)"
- VolP and VoLTE supported, VoLTE as a backup voice communication line
- Backup battery inside, complies with EN 81-28 and AS1735 standards
- Highly stable 4G/3G/2G cellular connectivity with global band coverage
- High performance compute engine with 8 GB eMMCFlash for running complex customer applications
- ‘Docker’ containerization supported
- 1 x RS232, 1 x RS485 +1 x CAN for connection to industrial/legacy devices
- 4 x DI & 1 x Relay for simple monitoring and control
- Dual SIM card slots for redundant communications
- 802.11ac Wi-Fi (optional, with seperate order SKU) supporting AP and Cient modes
- Bluetooth (optional, with seperate order SKU), Bluetooth 5.2 compliant
- Supports C, C++, Java, Python, Node.js etc. for users to develop their own applications
- More than 50,000 applications from Debian repository currently available
- Wireguard/IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN+ more VPN options
- Supports RCMS- Robustel’s router/gateway management platform for effective management of large estates of devices
Frequency Bands
4G: LTE-FDD:B1/2/3/4/5/7/8/28
LTE-TDD:B40
3G: WCDMA: B1/2/4/5/8
2G: GSM/EDGE:B2/3/5/8
Hardware System |
|
CPU |
i.MX 6ULL, 792MHz |
RAM |
512 MB DDR3 |
Flash |
8 GB eMMC |
Cellular Interface |
|
Number of antennas |
2 |
Connector |
SMA-K |
SIM |
2 x Mini SIM (2FF) |
FXS |
|
Number of ports |
1 |
Connector |
2-pin 5.08mm terminal block |
Signal |
TIP, RING |
Ethernet Interface |
|
Ports |
2 x RJ45, 10/100Mbps, LAN or WAN, 1 KV magnet isolation protection |
Serial Interface |
|
Type |
1 x RS232, 1 x RS485 +1 x CAN |
Connector |
3.5 mm terminal block |
ESD protection |
8 KV Air, 4 KV Contact |
Baud rate |
300 bps to 115200 bps for RS232/RS485, up to 1Mbps for CAN |
Signal |
RS232: TXD, RXD, GND RS485: A, B, GND CAN: CAN_H,CAN_ L, GND |
DI/Relay Interface |
|
Number of ports |
4 x DI(Wet contact) + 1 x Relay(Dry contact) |
Connector |
3.5 mm terminal block |
Absolute maximum VDC |
+ 30V DC(DI), +40VDC(Relay) |
Absolute maximum ADC |
100 mA(DI), 300mA(Relay) |
Signal definition |
DI1+, DI1-, DI2+, DI2-, DI3+, DI3-, DI4+, DI4- NC, NO, COM |
WiFi Interface (Optional, with seperate order SKU) |
|
Number of antennas |
2 |
Connector |
RP-SMA-K |
Standards |
802.11a/b/g/n/ac, 2 x 2 MIMO, supports AP and Client modes |
Frequency bands |
2.412 – 2.484 GHz (2.4 GHz ISM band) 5.18 – 5.825 GHz (5 GHz ISM band) |
Security |
WEP 64-bit and 128-bit encryption with H/W TKIP processing WPA/WPA2 (Wi-Fi Protected Access) AES-CCMP hardware implementation as part of 802.11i security standard |
Bluetooth Interface (Optional, with seperate order SKU) |
|
Number of antennas |
1 (Multiplexing Wi-Fi antenna) |
Connector |
RP-SMA-K |
Standards |
Bluetooth 2.1 and 3.0+Enhanced Data Rate (EDR) + Bluetooth 5.2 |
Others |
|
Reset button |
1 x RST |
Switch |
1 x Battery Switch |
USB |
1 x USB 2.0 (host), Type A, 5V, 500mA |
LED indicators |
1 x Battery, 1 x RUN, 1 x Line, 1 x MDM 1 x RSSI, 1 x Cloud, 1 x Device |
Watchdog |
External |
VOIP |
|
Protocols |
SIP (RFC3261) over UDP, SIPs, SRTP |
DTMF |
In-band, RFC2976, RFC 2833 |
Software (Basic features of RobustOS Pro) |
|
Network protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, HTTPs, DNS, ARP, VLAN, SSH2, DDNS, etc. |
VPN tunnel |
IPsec, OpenVPN, GRE |
Firewall |
DMZ, anti-DoS, Filtering (lP/Domain name/MAC address), Port Mapping, Access Control |
Remote management |
Web, CLI SMS |
Serial port |
Transparent, TCP Client/Server, UDP, Modbus RTU Gateway |
Others |
Smart Reboot, Data Guard, Smart Roaming |
SDK |
|
Operating System |
RobustOS Pro (Based on Debian 11(bullseye)) |
Supported programming languages |
C, C++, Python, Java, Node.js, etc. (for users to develop own applications) |
Debian Repository available |
|
Flash available for SDK |
6GB |
RAM available for SDK |
256 MB |
App Center (Available Apps for RobustOS Pro) |
|
Apps* |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic route, Captive Portal, Modbus Master, etc. |
*Request on demand. For more Apps please visit www.robustel.com
Power Supply and Consumption |
|
Connector |
2-pin 3.5 mm terminal block with lock |
Input voltage |
9~30V DC |
Power consumption |
ldle: 4W Data link: 25W (peak) |
Physical Characteristics |
|
Ingress protection |
IP30 |
Housing & Weight |
Plastic, 470g |
Dimensions |
170 * 150 * 35 mm |
Installations |
Desktop, wall mounting and 35 mm DIN rail mounting Magnetic optional, the suction iron is a detachable part |
Operating temperature |
-20~+60?(Without battery) 0 ~ + 45 °C(With battery) Note: The battery can be charged at 0~35°C |
Storage temperature |
-40 ~ + 85 °C(Without battery) -20 ~ + 35 °C(With battery for long term) |
Relative humidity |
5~95% RH |
Regulatory and Type Approvals (*In progress) |
|
Environmental |
RoHS2.0* |
EMI |
EN 55032 Conducted Emission class B* EN 55032 Radiated Emission class B* |
EMS |
IEC 61000-4-2 (ESD) Level 2* IEC 61000-4-3 (RS) Level 3* IEC 61000-4-4 (EFT) Level 2* IEC 61000-4-5 (Surge) Level 2* IEC 61000-4-6 (CS) Level 2* |
EV8100-A-4L-A34AU
