  • Prosafe 12-Port PoE+ Gigabit Ethernet Managed Switch, 2x SFP slots

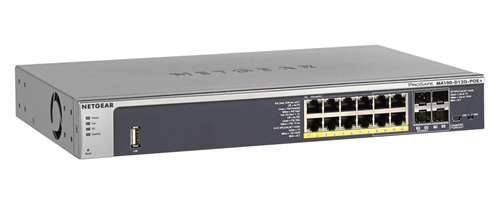

NETGEAR GSM5212P-100AJS Prosafe 12-Port PoE+ Gigabit Ethernet Managed Switch, 2x SFP slots

Prosafe 12-Port PoE+ Gigabit Ethernet Managed Switch, 2x SFP slots

M4100-D12G-POE+ ProSafe 12-port Gigabit L2+ Managed PoE+ Switch











Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The NETGEAR ProSafe "Intelligent Edge" Gigabit L2+ Managed Switch GSM5212P consist of 12 ports Gigabit with PoE+ connectivity, and 4 ports dual-speed SFP with fiber connectivity. Intelligent Edge series deliver a secure and flexible access in campus, commercial and enterprise converged environments: Wireless access points, IP telephony and video-surveillance.

PoE Pass-Through
In addition to very low acoustics for deployment in open areas, GSM5212P provides innovative PoE pass-through functionality for challenging environments without outlet such as conference rooms or retail sales floors: GSM5212P can be powered by PoE upstream switches and simultaneously power PoE devices downstream. Up to 22W power can be redistributed locally in Pass-Through mode.

Intelligent Edge
Combining superior resiliency and advanced security, GSM5212P provides comprehensive Layer 2, Lite Layer 3 and Layer 4 switching, including 16K MAC table size, 64 routing interfaces and 16 static routes.

Unified Communications – Voice over IP
The NETGEAR ProSafe "Intelligent Edge" simplifies converged data deployments with state-of-the-art capabilities. CoS Layer 2 prioritization and DiffServ Layer 3 & 4 policies allow for 1Kbps ingress and egress TCP/UDP granularity. LLDP-MED (Media Endpoint Discovery) automatically configures IP phones QoS and VLAN settings.

Unified Communications – Video Streams
IGMP filtering and querier ensure multicast streams are only delivered to interested receivers, preventing flooding even without a dedicated multicast router. When receivers are in different VLANs, Multicast VLAN registration (MVR) uses a dedicated multicast VLAN to forward multicast streams and avoid duplication for clients in different VLANs.

PHYSICAL INTERFACES

Front
• 12 auto-sensing RJ45 10/100/1000 ports
• 4 shared SFP ports for Gigabit fiber 100/1000
• 1 USB port (config/firmware files storage)
• 1 Mini-USB port RS-232 for console

Rear
• 1 Serial DB9 RS-232 port for console
• Redundant Power Supply: PoE pass-through mode
• 1 Kensington Lock Slot
• Power Supply: 1 fixed PSU (optional use)

Total
• 12 ports

POE
• 12 PoE+ ports
• PoE pass-through mode
• 2 PD ports (PoE in)
• 10 PSE ports (PoE out)
• IEEE 802.3af (up to 15.4 Watts/port)
• IEEE 802.3at (up to 30 Watts/port)
• IEEE 802.3at Layer 2 (LLDP) method
• IEEE 802.3at 2-event classification
• PoE timer/schedule (week, days, hours)

TOTAL POE BUDGET

AC Power Mode
• Using built-in PSU: 125 Watts

PoE Pass-Through Mode
• PD Port 1 (15.4W): 0 Watts
• PD Port 1 (30W): 0 Watts
• PD Port 1 (15.4W) Port 2 (15.4W): 13 Watts
• PD Port 1 (30W) Port 2 (15.4W): 13 Watts
• PD Port 1 (30W) Port 2 (30W): 22 Watts

PROCESSOR / MEMORY
• Processor: BCM53003 @600 MHz
• System memory: 128 MB (RAM)
• Packet buffer memory: 12 Mb
• Code storage (flash): 32 MB

PERFORMANCE SUMMARY
• Switching fabric: 24 Gbps
• Throughput: 17.8 Mpps
• Forwarding mode: Store-and-forward
• Latency (64-byte frames, 10 to 100 Mbps):
