  • NanoBeam 2AC CPE, 2.4GHz, 500mW, 13dBi

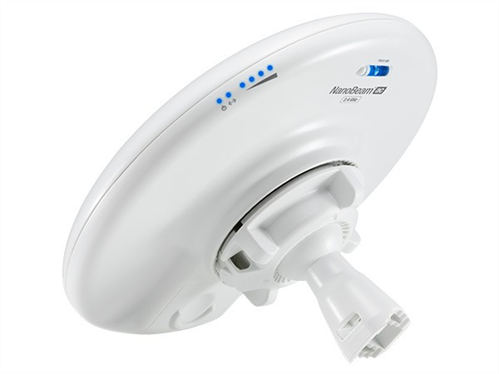

Ubiquiti NBE-2AC-13 NanoBeam 2AC CPE, 2.4GHz, 500mW, 13dBi

NanoBeam 2AC CPE, 2.4GHz, 500mW, 13dBi

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • airMAX Technology
  • Atheros MIPS 74Kc, 720 MHz Processor
  • 128MB DDR2, 8MB Flash Memory
  • 1 x 10/100/1000 Ethernet Port
  • airOS Software
  • Power/LAN/WLAN LED Indicators
  • Quick Assembly
  • Versatile Mounting

Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the NanoBeam® 2AC with dedicated Wi-Fi management. The NanoBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 2AC gets maximum gain out of the smallest footprint. Providing high performance and an innovative form factor, the NanoBeam 2AC is versatile and cost-effective to deploy.

airMAX ac devices feature a multi-radio architecture to power a revolutionary RF analytics engine. An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 2.4 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry.

General Specifications

Processor

Atheros MIPS 74Kc, 720 MHz

Memory

128 MB DDR2, 8 MB flash

Networking Interface

1 x 10/100/1000 Ethernet port



Power

Power Supply

24 V, 0.5 A Gigabit PoE

Power Method

Passive PoE (pairs 4, 5+ and 7, 8 return)

Power Consumption

8 W maximum

TX Power Specifications

Modulation: airMAX ac
Data Rate: 1 x BPSK (½)
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 2 x QPSK (½)
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 2 x QPSK (¾)
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 4 x 16QAM (½)
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 4 x 16QAM (¾)
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (2/3)
Average TX: 25 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (¾)
Average TX: 25 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (5/6)
Average TX: 24 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 8 x 256QAM (¾)
Average TX: 22 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 8 x 256QAM (5/6)
Average TX: 22 dBm
Tolerance: ± 2 dB

RX Power Specifications

Modulation: airMAX ac
Data Rate: 1 x BPSK (½)
Sensitivity: -96 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 2 x QPSK (½)
Sensitivity: -95 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 2 x QPSK (¾)
Sensitivity: -92 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 4 x 16QAM (½)
Sensitivity: -90 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 4 x 16QAM (¾)
Sensitivity: -86 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (2/3)
Sensitivity: -83 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (¾)
Sensitivity: -77 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 6 x 64QAM (5/6)
Sensitivity: -74 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 8 x 256QAM (¾)
Sensitivity: -69 dBm
Tolerance: ± 2 dB

Modulation: airMAX ac
Data Rate: 8 x 256QAM (5/6)
Sensitivity: -65 dBm
Tolerance: ± 2 dB



Antenna

Gain

19 dBi

Polarization

Dual linear

Operating Frequency

5150 to 5875 MHz
5725 to 5850 MHz

Wind Loading

45.4 N @ 200 km/h (10.2 lbf @ 125 mph)

Wind Survivability

200 km/hour (125 mph)



LED Indicator Specifications

LEDs

1 x Power
1 x LAN
4 x WLAN

Signal Strength LEDs

Software-adjustable to correspond to custom RSSI levels



Channel Size Support

PtP Mode

10/20/30/40/50/60/80 MHz

PtMP Mode

10/20/30/40 MHz



Environmental

Operating Temperature

-40 to +158°F (-40 to +70°C)

Operating Humidity

5 to 95% (non-condensing)



Tests

Salt Fog Test

IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5

Vibration Test

IEC 68-2-6

Temperature Shock Test

IEC 68-2-14

UV Test

IEC 68-2-5 at 104°F (40°C)
Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test

ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5



Other

Mounting

Pole-mount (kit included), wall-mount

ESD/EMP Protection

Air: ± 24 kV
Contact: ± 24 kV



Compliance and Approvals

Compliance

RoHS

Approvals

FCC, IC, CE



Physical Characteristics

Enclosure

Outdoor UV stabilized plastic

Dimensions

7.44 x 7.44 x 4.92" (18.89 x 18.89 x 12.49 cm)

Weight

1.17 lb (0.53 kg)
