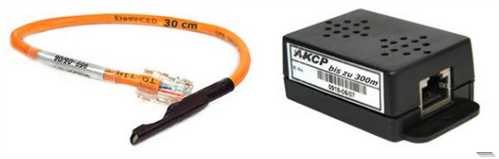

AKCP THS00 Temperature and Humidity Sensor for sensorProbe and securityProbe

Temperature and Humidity Sensor for sensorProbe and securityProbe

Combining temperature and humidity into the one sensor frees up an additional intelligent sensor port on your base unit.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

In situations where both temperature and humidity can be critical you can keep up to speed on the current conditions using this sensor. Combining temperature and humidity into the one sensor frees up an additional intelligent sensor port on your base unit.

  • Ships with free 1.5m CAT5 cable, user can extend up to 300m
  • Monitors temperature and humidity on a single intelligent sensor port
  • Own SNMP OID for data collection via a network
  • Temperature measurement from -40ºC – +75ºC
  • Relative Humidity measurement from 0% – 100%
  • Powered by base unit, no additional power needed

Setup is simple with the sensorProbe and securityProbe autosense function. Once plugged into the intelligent sensor port the base unit automatically detects the sensors presence and configures it for you.

All you need to do is set your thresholds for low and high warning and critical parameters. The built in graphing function of the base unit gives you a pattern of temperature or humidity trends over time.

Temperature

Measurement Range Celsius : -40°C to +75°C
Measurement Resolution Celsius : 1°C
Measurement Accuracy Celsius : Maximum ±2.3 at -40ºC, minimum ±0.4 at +25ºC and ±1.7 at +75ºC
Measurement Range Fahrenheit : -40°F to +167°F
Measurement Resolution Fahrenheit : 1°F increments
Measurement Accuracy Fahrenheit : Maximum ±4.1 at -40ºF, minimum ±0.9 at +25ºC and ±4 at +167ºF

Humidity

Measurement range : 0 to 100% Relative humidity
Resolution : 1%
Accuracy at : 25°C ±3%
Communications cable : UTP Cat 5 cable
Power source : Powered by the sensorProbe. No additional power needed
Power Consumption : Typical 7.25 mWatt, 1.45mA
Sensor element wettable without damage
sensorProbe auto detects the presence of the dual sensor
Up to 2 dual sensors per sensorProbe2, 8 per sensorProbe8 and securityProbe
