  • 6-Port Gigabit Industrial Switch, 1 x SFP, 1 x SFP/RJ45 Combo, -40°C to 75°C, DIN-Rail

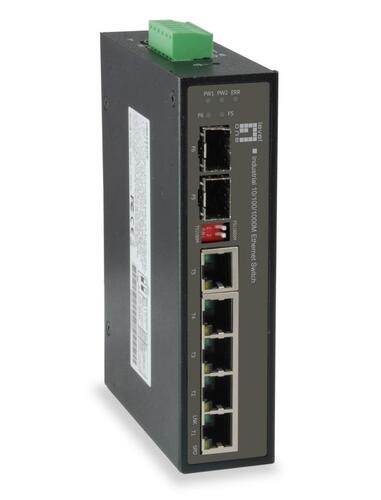

LevelOne IES-0600 6-Port Gigabit Industrial Switch, 1 x SFP, 1 x SFP/RJ45 Combo, -40°C to 75°C, DIN-Rail

6-Port Gigabit Industrial Switch, 1 x SFP, 1 x SFP/RJ45 Combo, -40°C to 75°C, DIN-Rail

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • 5 Gigabit ports with 1 shared SFP slot and 1 Gigabit SFP slot
  • -40°C to 75°C operating temperature range
  • IP30 metal case
  • Supports 9 to 56V DC power inputs
  • Redundant power inputs with Terminal Block

This LevelOne IES-0600 Industrial Ethernet Switch provides 4 ports 10/100/1000Base plus 2 ports Gigabit SFP to enable high speed networking for mission-critical environments. With the industrial standard DIN-rain mounting, this switch can be easily installed in a cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enable you to choose from a variety of transceivers.



Data rate

Gigabit Ethernet

PoE Supported

No

Concurrent ports

Total 6.00

Fanless

Yes

Manageable

No

Grade

Industrial



Approval and Compliance

FCC Part 15 Subpart B Class A
CE
VCCI
EN60950-1
EN61000-4-2 (ESD) Level 3
EN61000-4-3 (RS) Level 3
EN61000-4-4 (EFT) Level 3
EN61000-4-5 (Surge) Level 3
EN61000-4-6 (CS) Level 3
EN61000-4-8 (Magnetic Field) Level 3
UL508 (Pending)
EN 50121-4 (Pending)
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6
UL 508

Operating humidity

5% RH ~ 95% RH

Operating temperature

-40°C ~ 75°C

Storage humidity

5% RH ~ 95% RH

Storage temperature

-40°C ~ 85°C

Package Contents

IES-0600
Quick Installation Guide

Physical Specifications




Dimensions (W x D x H)

105 x 43 x 142 mm

Product weight (kg)

0,72

System specifications




Backplane (Gbps)

12

Flash memory size

1024

Packet forwarding rate

1000Mbps port - 1,488,000pps
100Mbps port - 148,000pps
10Mbps port - 14,880pps

Indicators

PW1 (Power 1) : Green / PW2 (Power 2) : Green / ERR (Fault) : Amber
LNK (RJ45) : Green
SPD : Amber (1000) / Green (100) / Off (10)
SFP : Green (Link / Active)

Jumbo frame (KB)

10

MAC address table

1K

Mount

DIN rail mount

Port Configuration

5*10/100/1000 Mbps, 2* SFP 1000 Mbps

Power consumption

5.52W power consumption 48VDC @ 0.12A (unit only)

Power input

Power Input: 9-56 VDC Dual power input capable (Redundancy)
Protection:
Polarity Reversal
Overload Current

Power Output

Alarm Relay Output 1A @ 24VDC

Power supply included

No

Standards

IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-X Gigabit Ethernet
IEEE 802.3x Full-duplex Flow Control
IEEE802.3x Flow Control and Back Pressure
