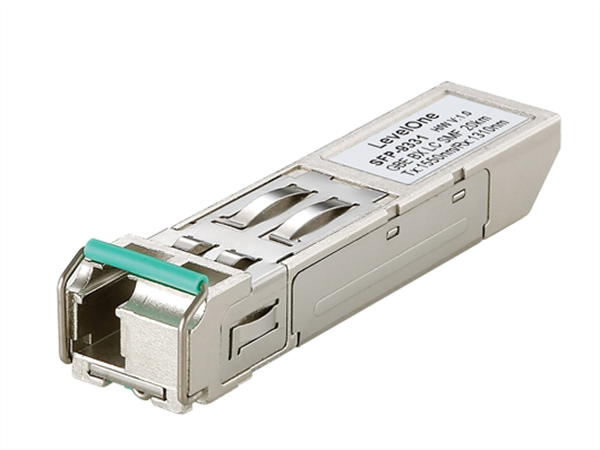

LevelOne SFP-9331 Gigabit Single-mode Bi-directional SFP (20km, TX/RX 1550/1310nm)

Gigabit Single-mode Bi-directional SFP (20km, TX/RX 1550/1310nm)

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The SFP-9331 transmits using a wavelength of 1550nm and receives using a wavelength of 1310nm. When coupled with the LevelOne SFP-9321 transceiver which transmits at and receives at the opposite rates (1550nm TX and 1310nm RX) you get bi-direction data communication on a single fiber core.

1550nm DFP LD
Multi Data Rate: from 125M to 1.25Gbps, NRZ
Single +3.3V Power Supply
RoHS Compliant and Lead-free
AC/AC Differential Electrical Interface
Compliant with Multi-Source Agreement(MSA)
Simplex LC Connector
Compliance with specifications for IEEE802.3z Gigabit Ethernet at 1.25Gbps
Compliance with ANSI specifications for Fiber Channel applications at 1.06bps
No configuration or installation software required
Eye Safety Designed to meet LASER Class 1 comply with EN60825-1
