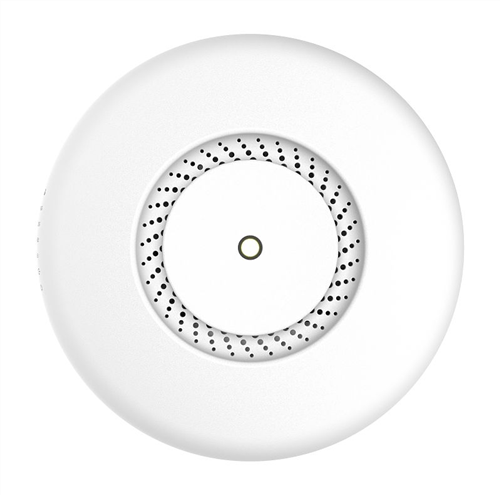

MikroTik RBCAPGI-5ACD2ND cAP ac Dual-band 2.4 / 5GHz Wireless Access Point, Ceiling/Wall Mount

cAP ac Dual-band 2.4 / 5GHz Wireless Access Point, Ceiling/Wall Mount

cAP ac

  • Dual-band 2.4 / 5GHz wireless access point
  • Ceiling or wall mounting
  • Two Gigabit Ethernet ports (one with PoE output),
  • 802.11ac support
  • IPsec hardware encryption support


Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output), 802.11ac support and IPsec hardware encryption support.

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ac standards, and will provide coverage in 360 degrees around it.

Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.

Powering Details
Max Power consumption 13W
PoE in 802.3af/at
PoE out Passive PoE up to 57V
PoE in input Voltage 17-57 V
Number of DC inputs : 1 (PoE-IN)

Included parts
24V 1.2A power adapter
Ceiling mount
Gigabit PoE injector
K-46 screw kit

Controlled Access Point system Manager (CAPsMAN) allows centralization of wireless network management and if necessary, data processing. When using the CAPsMAN feature, the network will consist of a number of 'Controlled Access Points' (CAP) that provide wireless connectivity and a 'system Manager' (CAPsMAN) that manages the configuration of the APs, it also takes care of client authentication and optionally, data forwarding.

When a CAP is controlled by CAPsMAN it only requires the minimum configuration required to allow it to establish connection with CAPsMAN. Functions that were conventionally executed by an AP (like access control, client authentication) are now executed by CAPsMAN. The CAP device now only has to provide the wireless link layer encryption/decryption.

• Centralised management of RouterOS Access Point
• Dual Band AP Support
• Provisioning of APs
• MAC and IP Layer communication with APs
• Certificate support for AP communication
• Full and Local data forwarding mode
• RADIUS MAC authentication
• Custom configuration support
• Automatic upgrade of all CAP clients
• L2 Path MTU discovery
