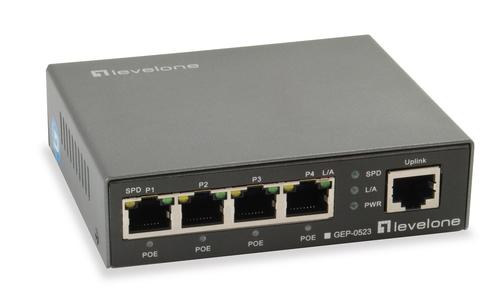

LevelOne GEP-0523 5-Port Gigabit PoE Switch, 802.3at/af PoE, 4 PoE Outputs, 60W
The LevelOne GEP-0523 is a Gigabit Ethernet PoE switch with a total of 5 ports, one of which is available as uplink port and 4 ports for Power over Ethernet.
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- 10/100/1000Mbps wire speed data transmission
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Total PoE power budget: 60W, up to 30W per port
- Dimensions (W x D x H mm): 110.20mm × 95.70mm × 30.00mm
- Weight (g): 750
|
Power Consumption |
< 60W |
|
Data rate |
10/100/1000Mbps |
|
Transmission Method |
Store-and-Forward |
|
MTBF |
30,000 hours |
|
Power input |
52VDC @ 1.25A 65W |
|
Approval and compliance |
CE,FCC |
|
Max. operating humidity (%) |
90 |
|
Max. operating temperature (°C) |
70 |
|
Max. storage humidity (%) |
90 |
|
Max. storage temperature (°C) |
75 |
|
Min. operating humidity (%) |
5 |
|
Min. operating temperature (°C) |
-20 |
|
Min. storage humidity (%) |
5 |
|
Min. storage temperature (°C) |
-20 |
|
Backplane (Gbps) |
10Gbps |
|
Indicators |
Power, Active, 10/100/1000M, PoE |
|
Jumbo frame (KB) |
9 |
|
MAC address table |
8K |
|
Flash memory size |
1024 |
|
Mount |
Desk mount |
|
Pin assignment and polarity |
1/2 (+), 3/6 (-) |
|
Power supply |
< 5W |
|
Power switch |
No |
|
Standards |
IEEE 802.3 10-BASE-T, Ethernet |
|
QIG language |
DE, EN, ES, FR, IT, PT |
|
Manual languages |
EN |
|
Product weight (kg) |
0,35 |
|
Product breadth (mm) |
96 |
|
Product depth (mm) |
30 |
|
Product height (mm) |
111 |
|
Color |
Black |
|
EAN |
4015867207437 |
|
Model number |
GEP-0523 |
|
Package contents |
PoE Switch |
|
Gigabit RJ45 |
5 |
|
802.3af/at PoE |
4 |
|
Switching capacity |
10Gbps |
|
PoE supported |
Yes |
|
Grade |
Soho/Business |
|
Manageable |
No |
|
Data Rate |
Gigabit Ethernet |
