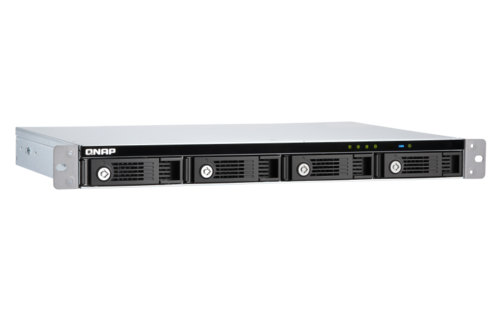

QNAP TR-004U 4-bay Rackmount RAID Expansion Enclosure for NAS and PC, USB 3.2
- 4-bay Rackmount RAID Expansion Enclosure, USB 3.2
- Expand the capacity of your NAS or PC
The TR-004U USB 3.0 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS or PC.
The TR-004U can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content by connecting it via USB. The TR-004U features four 3.5-inch SATA drive bays with multiple RAID configuration options and USB 3.0 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.
- USB 3.0 Type-C port for faster data transfer.
- Supports up to four SATA drives for reliable read and write performance.
- Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group.

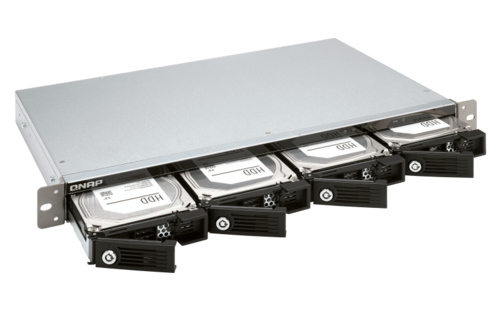

- Lockable hard drive trays to prevent accidental drive removal.
- Users can configure RAID and monitor disk health using Storage & Snapshots Manager on a QNAP NAS.
- Can be used to add storage space to a QNAP NAS, serve as hardware-based RAID storage, and offers cross-platform file sharing for users.
Effective storage expansion with RAID Support
The TR-004 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install larger, higher-capacity drives. Featuring four 3.5-inch SATA drive bays and supporting RAID configuration, the TR-004 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.
Supports various RAID levels
The TR-004 supports a variety of RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0, RAID 1/10 or RAID 5. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.
Individual Mode
Treats every disk as separate storage space, allowing you to independently access each one.
JBOD Mode
All the disks are recognized as a single drive. This allows maximal storage utilization but provides no data protection.
RAID 0 Mode
Data is split amongst the drives. RAID 0 provides the fastest performance but does not protect data from drive failure.
RAID 1/10 Mode
Half of the total storage capacity is used to store data, and the other half keeps a copy of this data. This provides high data protection at the cost of only being able to use half the installed storage space.
RAID 5 Mode
RAID 5 requires at least three drives to use and parity information is distributed among the drives, providing optimized storage capacity and protection against one disk failing.
Software Ctrl Mode
Use this mode to control the RAID configuration from your NAS or computer.
Supported QNAP Models
[1 Bay]
TS-131PTS-131KTS-128A
[2 Bays]
TS-231PTS-231P2TS-231+TS-231P3TS-231KTS-228ATS-251TS-251CTS-251+TS-251AHS-251HS-251+TS-253 ProTS-253ATS-253BeTS-251BTS-253BTS-251DTS-253D
[3 Bays]
TS-351TS-332XTS-364
[4 Bays]
TS-431PTS-431P2TS-431+TS-431XTS-431X2TS-431KXTS-431X3TS-431P3TS-431KTS-451TS-451STS-451+TS-451ATS-453 ProIS-453SIS-400 ProTS-453miniTS-453S ProTS-453ATBS-453AHS-453DXTS-453BeTS-453BTS-453BminiTS-451D2TS-453BT3TS-453DTVS-463TS-470 ProTS-470TVS-471TS-473TVS-473TVS-473eTS-431XUTS-431XU-RPTS-431XeUTS-432XUTS-432XU-RPTS-451UTS-453UTS-453U-RPTS-453BUTS-453BU-RPTS-451DeUTS-453DUTS-453DU-RPTS-463UTS-463U-RPTS-463XUTS-463XU-RPTS-470U-SPTS-470U-RPTVS-471UTVS-471U-RPTVS-472XTTBS-453DXTS-432PXUTS-432PXU-RPTS-473ATBS-464
[5 Bays]
TS-531XTS-531PTS-563
[6 Bays]
TS-651TS-653 ProTS-653ATS-653BTS-653DTVS-663TS-670 ProTS-670TVS-671TS-673TVS-673TVS-673eTS-677TVS-682TVS-682TTVS-672NTVS-672XTTVS-672XTS-h686TS-673ATVS-675
[8 Bays]
TS-831XTS-851TS-853 ProTS-853S ProTS-853ATVS-863TVS-863+TS-870 ProTS-870TVS-871TVS-871TTS-873TVS-873TVS-873eTS-877TS-879 ProTVS-EC880TS-EC880 ProTVS-882ST2TVS-882ST3TVS-882TVS-882BRTVS-882TTVS-882BRT3TS-831XUTS-831XU-RPTS-832XTS-832XUTS-832XU-RPTS-853UTS-853U-RPTS-853BUTS-853BU-RPTS-853DU-RPTS-863UTS-863U-RPTS-863XUTS-863XU-RPTS-870U-RPTVS-871U-RPTS-873UTS-873U-RPTS-877XUTS-877XU-RPTS-879U-RPTS-EC879U-RPTS-EC880UTS-EC880U R2TVS-872XUTVS-872XU-RPTVS-872NTVS-872XTTVS-872XTS-883XUTS-883XU-RPTS-h886TS-873AUTS-873AU-RPTS-832PXUTS-832PXU-RPTS-832PXTS-873A
[9 Bays]
TS-963XTVS-951XTS-932XTS-977XUTS-977XU-RPTVS-972XUTVS-972XU-RPTS-983XUTS-983XU-RPTS-h977XU-RPTS-932PXTS-h973AX
[10 Bays]
TS-1079 ProTVS-EC1080TVS-EC1080+TS-EC1080 ProTNS-h1083X
[12 Bays]
TS-1277TVS-1282TVS-1282TTVS-1282T3TS-1231XUTS-1231XU-RPTS-1232XUTS-1232XU-RPTS-1253UTS-1253U-RPTS-1253BUTS-1253BU-RPTS-1253DU-RPTS-1263UTS-1263U-RPTS-1263XUTS-1263XU-RPTS-1270U-RPTVS-1271U-RPTS-1273UTS-1273U-RPTS-1277XU-RPTS-1279U-RPTS-EC1279U-RPSS-EC1279U-SAS-RPTS-EC1279U-SAS-RPTS-EC1280UTS-EC1280U R2TVS-EC1280U-SAS-RPTVS-EC1280U-SAS-RP R2TVS-1272XU-RPTS-1283XU-RPTS-h1283XU-RPTS-h1277XU-RPTVS-h1288XTS-1273AU-RPTS-1232PXU-RP
[15 Bays]
TVS-EC1580MU-SAS-RPTVS-EC1580MU-SAS-RP R2TVS-1582TU
[16 Bays]
TS-1635TS-1635AXTS-1677XTS-1685TS-1673UTS-1673U-RPTS-1677XU-RPTS-h1677XU-RPTS-1679U-RPTS-EC1679U-RPTS-EC1679U-SAS-RPTS-EC1680UTS-EC1680U R2TVS-EC1680U-SAS-RPTVS-EC1680U-SAS-RP R2TDS-16489U R2(QTS)TDS-16489UTVS-1672XU-RPTS-1683XU-RPTVS-h1688XTS-1673AU-RPTS-h1683XU-RP
[18 Bays]
SS-EC1879U-SAS-RPTES-1885U(QTS)TS-1886XU-RP
[24 Bays]
TS-2477XU-RPTS-h2477XU-RPSS-EC2479U-SAS-RPTS-EC2480UTS-EC2480U R2TVS-EC2480U-SAS-RPTVS-EC2480U-SAS-RP R2TVS-2472XU-RPTS-2483XU-RPTS-h2490FUTS-h2483XU-RP
[28 Bays]
TS-2888X
[30 Bays]
TES-3085U(QTS)TS-h3088XU-RP
[2 Bays]
QGD-1600PQGD-1602P
