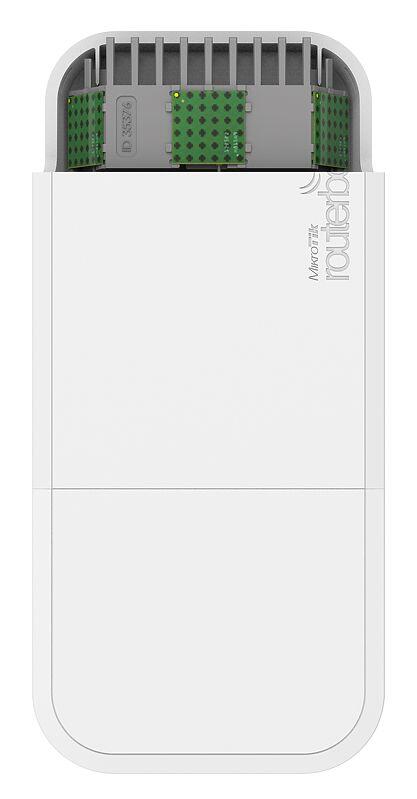

MikroTik RBwAPG-60ad-SA 60 GHz Wireless Outdoor Access Point
60 GHz Base Station with Phase array 180° beamforming Integrated antenna, specially designed for Multipoint connections
The wAP 60Gx3 AP is a new access point model for the 60 GHz spectrum. Compared with the regular wAP 60G AP, this new model has a completely new antenna array, with support for a much wider angle of coverage and is optimized specifically for multipoint operation.
The 96 antenna elements work with beamforming technology to provide connectivity for up to eight 60 GHz client devices at the same time, in a 180 degree field of view. Build a cost effective point to multipoint setup in the clean 60 GHz wireless spectrum, at a fraction of the cost.
Two wAP 60Gx3 AP units can be used in point-to-point configurations as well.
Dimensions 185 x 85 x 30 mm
Tested ambient temperature -40°C to 70°C
PoE in 802.3af/at
PoE in input Voltage 20-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 11 W
1 x 10/100/1000 Ethernet port
Included parts:
24V 0.8A power adapter
K52 screw kit
wAP mount bracket
Gigabit PoE injector
Metal ring (one)
Use CAPsMan to allow centralisation of wireless network management.
You can use the Mikrotik capsman to manage multiple access points and enable roaming between them. This will ensure that users can roam from one access point to the other without loosing connections. Capsman stands for controlled access point system manager. It allows network administrators to manage multiple Mikrotik access point from a central location.
• Centralised management of RouterOS Access Point
• Dual Band AP Support
• Provisioning of APs
• MAC and IP Layer communication with APs
• Certificate support for AP communication
• Full and Local data forwarding mode
• RADIUS MAC authentication
• Custom configuration support
• Automatic upgrade of all CAP clients
• L2 Path MTU discovery
