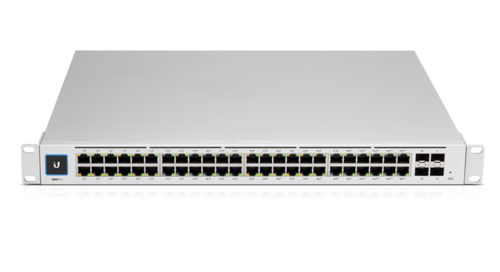

Ubiquiti USW-PRO-48-POE 48-Port UniFi Pro Gigabit Managed PoE+ Switch, Gen2, with 4x SFP+

  • 802.3at/bt PoE Gigabit Switche with Layer 3 Features
  • Auto-Sensing IEEE 802.3af/at/bt PoE
  • 600W Total PoE power budget
  • SFP+ Ports for 10G Links
  • Integrated Fans for Near-Silent Cooling

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The USW-Pro-48-POE Gen 2 is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Forty PoE+ and eight PoE++ RJ45 ethernet ports have total 600W PoE budget, and four SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3" touch LCM.

Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch PRO 48 PoE, is a configurable Gigabit Layer-3 switch with auto-sensing 40 802.3at PoE+ and 8 802.3bt PoE++. It offers 48 RJ45 Ethernet ports and 4 SFP+ ports, providing 10 Gigabit PoE links to your devices and fiber uplink options to your enterprise network.

The UniFi Switch PRO 48 PoE features an 1.3" touch LCM and integrated fans for quiet cooling. The LCM provides current switch states and the neccessary information you need for quick diagnosis.

Managed and configured by the UniFi Controller with UniFi Mobile app support, the UniFi Switch offers an extensive suite of advanced Layer-3 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port, Inter-VLAN routing, static routing and DHCP server. The UniFi Controller and mobile app allows admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Note: Layer3 will be included in later software release



Dimensions

442.4 x 399.6 x 43.7 mm

Weight
With Rackmount Brackets

6.25 kg
6.34 kg

Interfaces
Networking

Management

(48) 10/100/1000 RJ45 Ports
(4) 10G SFP Ethernet Ports

Ethernet In-Band

Power Method
Universal Input
USP RPS DC Input


100-240VAC/50-60 Hz
52VDC, 11.54A; 11.5VDC, 5.22A

Power Supply

AC/DC, Internal, 120W

Supported Voltage Range

100 to 240VAC

Max. Power Consumption (Excluding PoE Output)

60W

LEDs
System
RJ45 Data Ports
SFP Data Ports


Status
PoE; Speed/Link/Activity
Link/Activity

ESD/EMP Protection

Air: ± 16 kV, Contact: ± 12 kV

Shock and Vibration

ETSI300-019-1.4 Standard

Operating Temperature

-5 to 40° C

Operating Humidity

10 to 90% Noncondensing

Certifications

CE, FCC, IC

SOUND LEVEL*



25% PoE Load, 25° C Room Temperature

0.9 dBr

50% PoE Load, 25° C Room Temperature

7.3 dBr

100% PoE Load, 40° C

22.5 dBr

POE



PoE Interfaces
Ports 1-40
Ports 41-48


POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)

Max. PoE Wattage per Port by PSE
802.3at
802.3bt


32W
64W

Voltage Range 802.3af Mode

44-57V

Voltage Range 802.3at Mode

50-57V





Dimensions

442.4 x 399.6 x 43.7 mm

Weight
With Rackmount Brackets

6.25 kg
6.34 kg

Interfaces
Networking

Management

(48) 10/100/1000 RJ45 Ports
(4) 1G SFP Ethernet Ports

Ethernet In-Band

Power Method
Universal Input
USP RPS DC Input


100-240VAC/50-60 Hz
52VDC, 11.54A; 11.5VDC, 5.22A

Power Supply

AC/DC, Internal, 120W

Supported Voltage Range

100 to 240VAC

Max. Power Consumption (Excluding PoE Output)

60W

LEDs
System
RJ45 Data Ports
SFP Data Ports


Status
PoE; Speed/Link/Activity
Link/Activity

ESD/EMP Protection

Air: ± 16 kV, Contact: ± 12 kV

Shock and Vibration

ETSI300-019-1.4 Standard

Operating Temperature

-5 to 40° C

Operating Humidity

10 to 90% Noncondensing

Certifications

CE, FCC, IC

SOUND LEVEL*



25% PoE Load, 25° C Room Temperature

0.9 dBr

50% PoE Load, 25° C Room Temperature

7.3 dBr

100% PoE Load, 40° C

22.5 dBr

POE



PoE Interfaces
Ports 1-40
Ports 41-48


POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)

Max. PoE Wattage per Port by PSE
802.3at
802.3bt


32W
64W

Voltage Range 802.3af Mode

44-57V

Voltage Range 802.3at Mode

50-57V
