MikroTik MTAS-5G-19D120 mANT 19s 5GHz 19dBi 120deg Sector Antenna

mANT 19s 5GHz 19dBi 120deg Sector Antenna

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

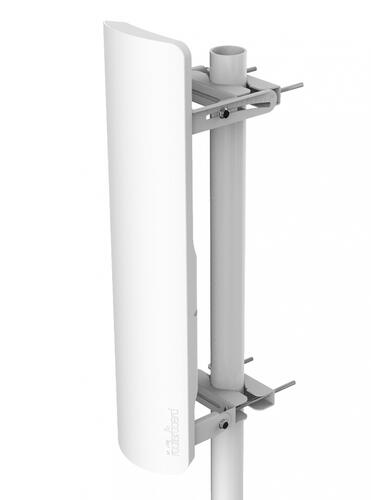

mANT 19s 5GHz 120 degree 19dBi 2x2 MIMO Dual Polarisation Sector Antenna with RP-SMA Connectors

Sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.
The mANT is a dual-polarization 19dBi 120 degree beamwidth antenna with two RP-SMA connectors. It comes with metallic U bolt type mounts

  • Antenna gain, dBi: 19
  • Frequency Range: 5.17 - 5.825 GHz
  • Polarization: Vertical and horizontal
  • Beamwidth: 120 deg (azimuth) 5 deg (elevation)
  • VSWR: 1.43 typ, 1.8 max
  • Port to Port Isolation: >40 dB min
  • Front-to-Back Ratio: >30 dB
  • Cross Polarization: >30 dB
  • Diameter x Depth: 152 x 598 x 78 mm
  • Weight: 1270 g
  • Connector: two RP-SMA
