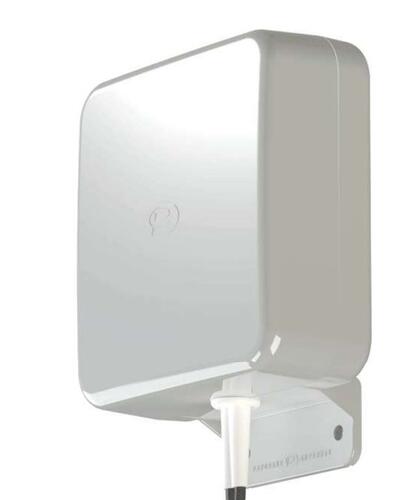

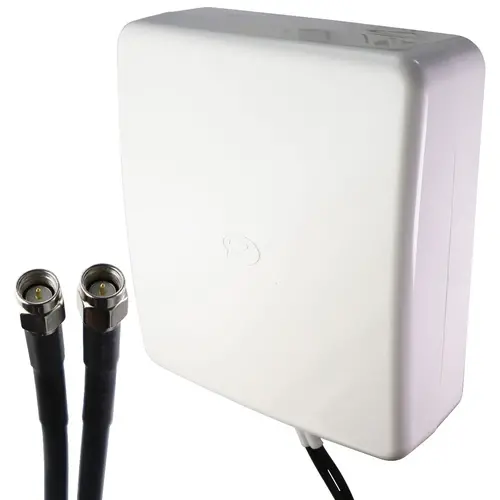

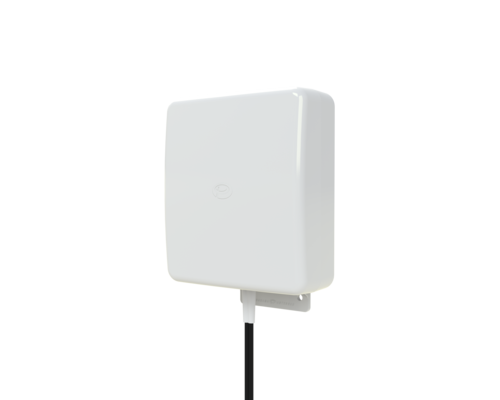

Panorama Antennas WMM8G-7-38-5SP Outdoor Directional Wideband Antenna, 2G/3G/4G/5G, 2x SMA on 5m cable

Signal boosting antenna for 4G and 5G networks

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The WMM8G-7-38 antenna is a high gain directional 2x2 MIMO signal boosting antenna for 4G and 5G networks. Incorporating two separately fed wideband elements in a single housing the WMM8G is equipped to provide client side MIMO and diversity support for 4G and some 5G networks.

The rugged, weatherproof housing is designed for wall or mast mounting.

Compatible with most cellular routers including Cradlepoint abd Robustel.

  • Supports 2x2 MiMo 2G/3G/4G and some 5G networks
  • Cellular/LTE (698-960/1710-3800MHz)
  • High Directional gain 6-8dBi
  • Wall Mount or Mast Mount - brackets are provided
  • 5m of fitted low loss double shielded twin cable minimizes exposed connector joints and simplifies cable management for easy installation.
  • 2x SMA Plug (m)
Electrical Data
LTE Frequencies 698-960/1710-3800MHz
Typical VSWR <2:1
Peak Gain (dBi) 9
LTE MiMo 2x2
Max Input Power (W) 50
Pattern Directional
Mechanical Data
Available Colours White
Length (mm) 94
Width (mm) 180
Height (mm) 230
Operating Temperature -30 / +70° C
Mounting Data
Mounting Type Wall Mount; Mast Mount
Mounting Method Wall Bracket; Mast Clamp; U Bolt; Screw Mount
Approvals Data
IP Rating IP65
