Panorama Antennas EFBAD-3F Windshield Mount Antenna for 700MHz and 800MHz bands

Windshield Mount Antenna for 700MHz and 800MHz bands

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

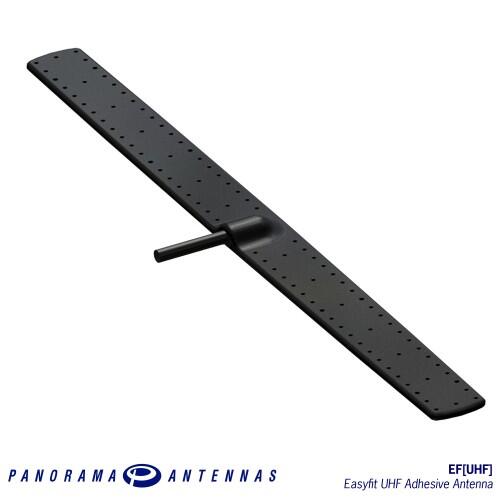

The Panorama On Glass antenna Easy Fit can be quickly and easily installed on a windscreen or any plastic surface and is ideal for discrete / semi covert applications or situations when it is not possible to drill a hole.

  • Excellent performance at UHF Frequncies
  • No-hole installation
  • Acrylic Adhesive Mounting Pad
  • The antenna is held securely in place using a pressure sensitive acrylic adhesive pad
  • 762-870MHz Bands

Application Frequency
UHF Frequency Band : B1 (762-800MHz); S5 (806-870MHz); 7/800 (762-870MHz)
Electrical Data
Peak Gain (dBi) : 2
Max Input Power (W) : 20
Pattern : Omni-directional
Ground Plane Independent : Yes

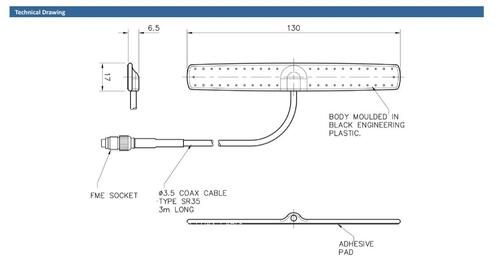

Mechanical Data
Length (mm) : 130
Width (mm) : 17
Operating Temperature : -30 / + 70°C
Mounting Data
Mounting Type : Glass Mount; Adhesive Mount
Mounting Method : Adhesive Pad
