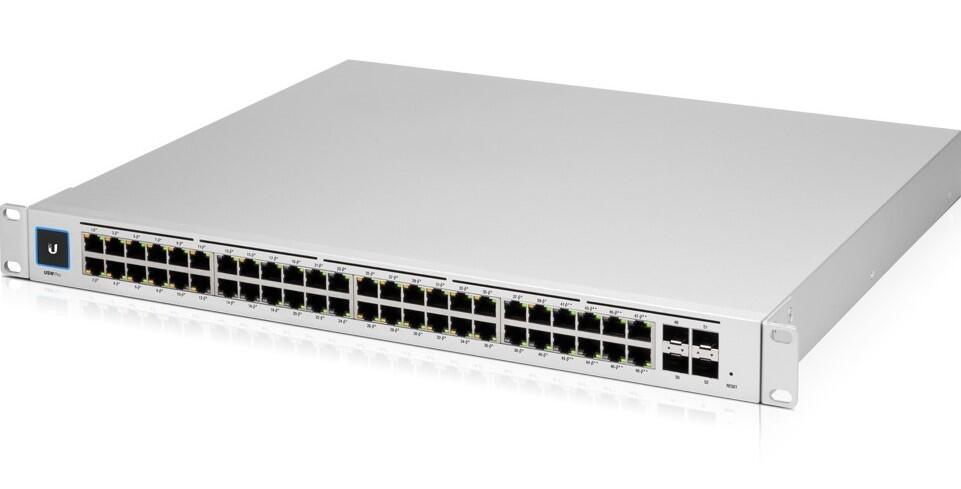

Ubiquiti USW-48-POE 48-Port UniFi Gigabit Managed PoE+ Switch, Gen2, 32x PoE Ports
48-Port managed PoE switch with (48) Gigabit Ethernet ports including (32) 802.3at PoE+ ports, and (4) SFP ports. Powerful second-generation UniFi switching.
- (48) Gigabit Ethernet Ports
- (32) 802.3at PoE+ Ports
- Total Available PoE : 195W
- (4) 1G SFP Ports
- 1.3" touch LCM
- Managed by UniFi Controller
- 240W Power supply
The USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-PoE features a 1.3" touch LCM to provide status.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
|
Dimensions |
442.4 x 285 x 43.7 mm |
|
Weight |
4.52 kg |
|
Interfaces |
|
|
Power Method |
100-240VAC, 50/60 Hz, Universal Input |
|
Power Supply |
AC/DC, Internal, 240W |
|
Supported Voltage Range |
100 to 240VAC |
|
Max. Power Consumption (Excluding PoE Output) |
195W |
|
LEDs |
|
|
ESD/EMP Protection |
Air: ± 16 kV, Contact: ± 12 kV |
|
Shock and Vibration |
ETSI300-019-1.4 Standard |
|
Operating Temperature |
-5 to 40° C (23 to 104° F) |
|
Operating Humidity |
10 to 90% Noncondensing |
|
Certifications |
CE, FCC, IC |
|
POE |
|
|
PoE Interfaces |
|
|
Max. PoE Wattage per Port by PSE |
|
|
Voltage Range 802.3af Mode |
44-57V |
|
Voltage Range 802.3at Mode |
50-57V |
