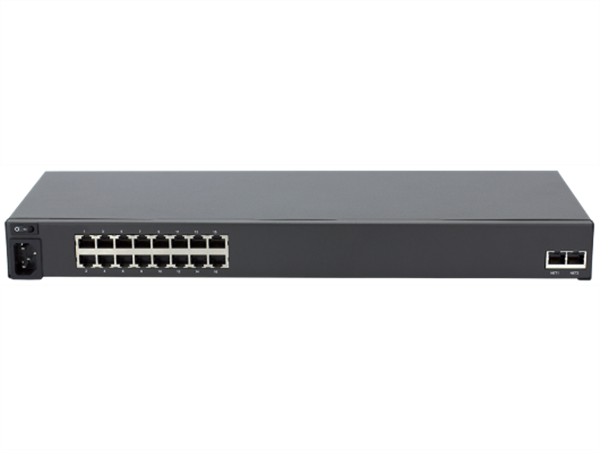

Opengear CM7116-2-SAC 16-Port Serial Infrastructure Manager, Single AC Power, Dual GigE

16-Port Serial Infrastructure Manager, Single AC Power, Dual GigE

16 Port Secure Console Server w/ 1 x RJ45 local console, Dual Ethernet, 2 x USB 2.0, 4GB internal flash storage

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The Opengear CM7100 is a feature-rich console server that simplifies out-of-band management for your network, server and power infrastructure in data centers and remote sites. Powerful monitoring, diagnostics and remediation features enable efficient recovery from infrastructure fault conditions and maximize uptime. An intuitive dashboard with proactive alerting provides network and IT administrators with real-time status of the core infrastructure.

16 port Console Server, RS-232 RJ45 serial (Cisco Straight pinout), Dual Gig (10/100/1000) Ethernet, AC power, 4GB flash , 2 x USB 2.0 ports, FIPS140-2 Certified

  • 16 serial ports, out-of-band management of network and server devices
  • Simple straight-through cabling to Cisco-style serial consoles
  • Dual Gigabit Ethernet for built-in redundancy
  • Audit trail logging to embedded 4GB local storage or remote log server for troubleshooting and compliance.
  • Link Layer Discovery Protocol (LLDP) discover, identify and verify attached devices on your local network.
  • AAA including Active Directory and TACACS+ integration, lock down access per user and group.
  • Environmental monitoring with optional EMD5000 module, Nagios and SolarWinds integration.
  • Unified power management of PDU and UPS equipment from 100+ vendors.
  • Console management raised to a new level with SmartOOB.
  • Zero-Touch Provisioning (ZTP) automation over the network, without manual user interaction.

Product Specifications

16 x RS-232 Serial Ports
Dual LAN ports for main and secondary networks (2 x 10/100/1000 Base-T RJ45)
Secondary LAN for redundancy, management network, out-of-band link, Internet or WAN
Serial ports (16) RJ45 RS-232 at 50 to 230,400bps with Cisco-straight pinout and full IPv6 support
Dual USB2.0 host ports for peripherals and additional storage
Internal universal 100-240V AC power supply (IEC C14) with ON/OFF switch

Power

Single socket universal 100-240V AC
Power consumption 20W ~ 25W (16~48 ports)
Dimensions and Weight

17 x 6.9 x 1.75 in (44 x 17.5 x 4.5 cm)
9 lbs (4.0 kg)
1RU with rack mounts

Environmental

Ambient operating temperature: 41°F to 122°F (5°C to 50°C)
Storage temperature: -20°F to +140°F (-30°C to +60°C)
Humidity: 5% to 90%

Emissions

FCC Part 15 Subpart B Class A Radiated Emissions 30MHz - 1000MHz
ICES-003 Issue 4 February 2004 Class A Radiated Emissions 30MHz - 1000MHz
AS/NZS CISPR 22: 2004 Class A Radiated Emissions 30MHz - 1000MHz
EN5502: 1998 + A1: 2000 + A2: 2003 Class A Radiated Emissions 30MHz - 1000MHz

Immunity

EN55024: 1998 +A1: 2001 +A2: 2003
IEC61000-4-2: 1995 ESD 8kV Air Discharge (Direct), 4kV Contact Discharge (Direct/Indirect)
IEC61000-4-3: 1995 Radiated Immunity 3.0V/m, 1KHz AM Sine Wave at 80%
IEC61000-4-4: 1995 EFT/Burst 1.0kV Power Lines, 0.5kV I/O Lines
IEC61000-4-5: 1995 Surge Immunity 1.0kV Common Mode, 1.0 kV Differential Mode
IEC61000-4-6: 1996 Conducted Immunity 3.0 Vrms, 80% AM Modulated (1KHz)
IEC61000-4-11: 1994 Voltage Dips and Interrupts (>95%,0.5 periods), (30%,25 periods), (>95%,250 periods)

Isolation

Serial Port: 4kV ESD protection on RS-232 transceivers
Ethernet Port: 1500V AC isolation shielded with shield connected to chassis ground for signal integrity and ESD protection

Other Approvals

CE, UL 1950, TUV, C-Tick, RoHS compliant, Security features to support NERC CIP standards, FIPS 140-2 validated module Certificate #1051
Memory & CPU

800 MHz Armada 370 ARMv7 SoC (Marvell 88F6W11)
256MB DDR3 SDRAM (533 MHz)
32MB boot flash embedded NOR SPI (50 MHz)
4 GB SD internal flash storage (50 MHz)

MTBF

150,000 Hours

Security & Authentication

IPSec & OpenVPN, SSL tunnels, Secure Shell (SSH V2), TACACS+, Kerberos, RADIUS with RSA SecurID and LDAP authentication, PAP/CHAP authentication (dial-up), Dial-back support, Local authentication, System event syslog, Authenticated NTP

Gateway Router

Stateful firewall, DHCP server, DDNS, Failover, Port forwarding, IP filtering with access control lists. 700 Mbps firewall throughput, 140 Mbps VPN throughput (through LAN ports).

Remote Management

HTTPS & SSH console, Nagios NSCA & NRPE, SNMP, TFTP & FTP server, Password access control, IP service port control, AJAX web terminal, Auto Response
