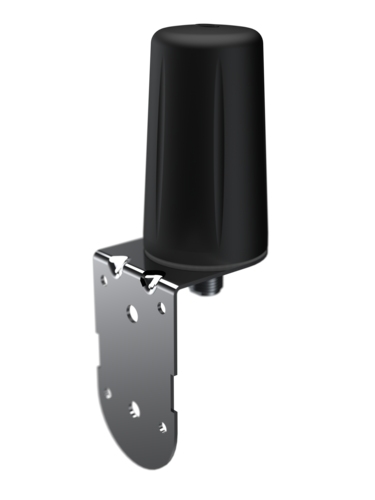

Panorama Antennas B4BE-6-60-2SP 5G/4G/LTE Low Profile Antenna with Bracket Mount and 2m cable, SMA

5G/4G/LTE Low Profile Antenna with Bracket Mount and 2m cable, SMA

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

5G LTE Low Profile Bracket Mount Antenna w/ 2m cable SMA

Compatible with Cradlepoint, Robustel, DrayTek routers and more.

The Panorama B4BE is a robust bracket mount antenna for LTE, M2M and IoT applications.

The B4BE range has been designed to provide cost effective coverage booster antennas for 2G/3G/4G and 5G devices. The antennas are designed for wall or mast mounting and are weather proof which allows the device to reap the benefits of an antenna mounted in an elevated or external location where the signal is strongest.

The omni-directional radiation pattern allows the antenna to be quickly installed while the global Cellular/GSM/LTE coverage provided by the antenna allows it to be utilised for 2G/3G & 4G applications the world over.

Electrical Data
LTE Frequencies 617-960/1710-6000MHz
Typical VSWR <2.5:1
Peak Gain (dBi) 5
Max Input Power (W) 30
Pattern Omni-directional
Mechanical Data
Available Colours Black; White
Height (mm) 164
Diameter (mm) 48
Operating Temperature -40 / + 80°C
Mounting Data
Mounting Type Wall Mount; Mast Mount
Mounting Method Screw Mount; Jubilee Clip
Approvals Data
IP Rating IP66
