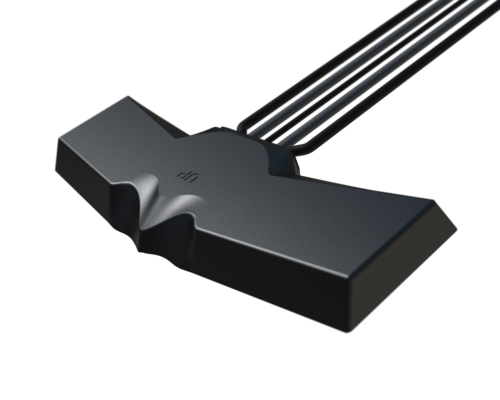

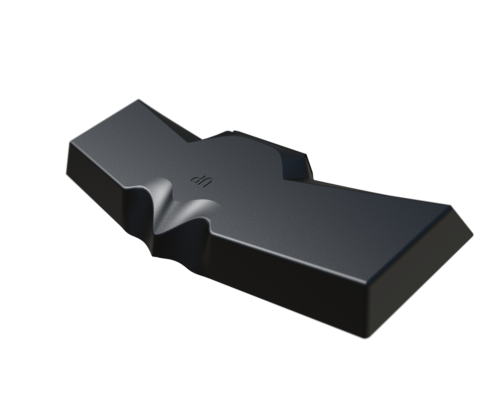

Panorama Antennas BATM-7-60 2-in-1 2x2 MiMo 5G LTE Covert BAT Antenna w/ 3m cables

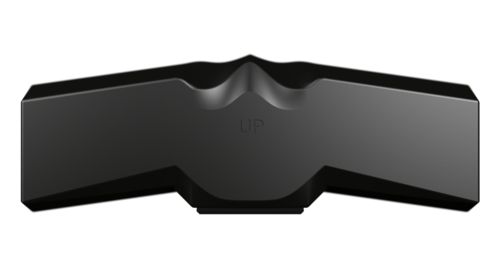

2-in-1 2x2 MiMo 5G LTE Covert BAT Antenna w/ 3m cables
Compatible with Cradlepoint IBR900 / IBR1700 series routers
The Panorama BATG range is designed for Telematics applications requiring high speed data with MiMo 4G / 3.5GHz 5G and fallback 3G/2G support along with optional positioning through GPS/GNSS, and optional dual band 2.4/5.0GHz Wifi.
The isolated dual 4G/3G/2G antennas cover 698-960/1710-6000MHz and the efficient element design ensures a high first time connection rate and an ongoing, robust communications link even in many low coverage areas.
The antenna is designed to be mounted on or under a vehicle dashboard but can be mounted on any non-conductive surface. The BAT range is supplied with up to five integrated low loss cables which are flame retardant and meet the requirements of UN ECE 118.
Features
- Mount on or under dashboard
- MiMo 3.5GHz 5G & 4G/3G/2G functionality
- Optional SiSo or MiMo WiFi
- GPS/GNSS 26dB LNA
| Application Frequency | |
| LTE Band | 4G/3G/2G |
| Electrical Data | |
| Global Positioning | GPS/GNSS |
| Wifi Frequencies | 2.4/5.0GHz |
| Typical VSWR | <2.5:1 |
| WiFi MiMo | Optional 2x2; 2x2 |
| Max Input Power (W) | 20 |
| Pattern | Omni-directional |
| Global Positioning Data | |
| LNA Gain (dB) | 26 |
| Mechanical Data | |
| Available Colours | Black |
| Length (mm) | 214 |
| Width (mm) | 77 |
| Height (mm) | 16.5 |
| Operating Temperature | -30 / + 70°C |
| Mounting Data | |
| Mounting Method | Adhesive Pad |
| Approvals Data | |
| Flame Retardancy | UN ECE 118 Compliant |
| Industry Approvals | E11 |
