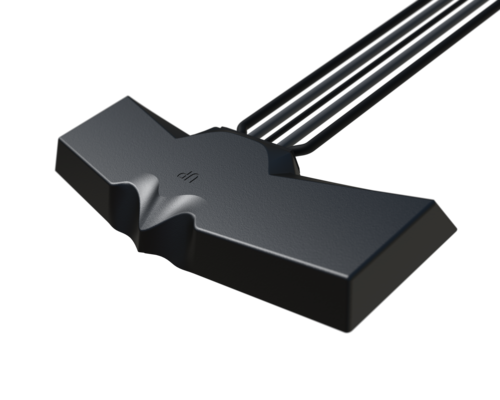

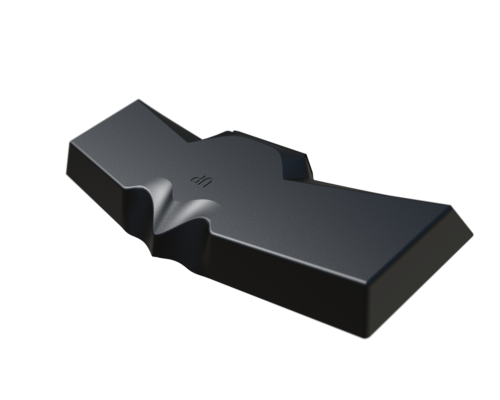

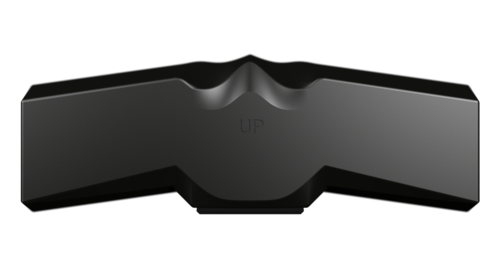

2-in-1 2x2 MiMo 5G LTE Covert BAT Antenna w/ 3m cables

Compatible with Cradlepoint IBR900 / IBR1700 series routers

The Panorama BATG range is designed for Telematics applications requiring high speed data with MiMo 4G / 3.5GHz 5G and fallback 3G/2G support along with optional positioning through GPS/GNSS, and optional dual band 2.4/5.0GHz Wifi.
The isolated dual 4G/3G/2G antennas cover 698-960/1710-6000MHz and the efficient element design ensures a high first time connection rate and an ongoing, robust communications link even in many low coverage areas.
The antenna is designed to be mounted on or under a vehicle dashboard but can be mounted on any non-conductive surface. The BAT range is supplied with up to five integrated low loss cables which are flame retardant and meet the requirements of UN ECE 118.

Features

  • Mount on or under dashboard
  • MiMo 3.5GHz 5G & 4G/3G/2G functionality
  • Optional SiSo or MiMo WiFi
  • GPS/GNSS 26dB LNA
Application Frequency
LTE Band 4G/3G/2G
Electrical Data
Global Positioning GPS/GNSS
Wifi Frequencies 2.4/5.0GHz
Typical VSWR <2.5:1
WiFi MiMo Optional 2x2; 2x2
Max Input Power (W) 20
Pattern Omni-directional
Global Positioning Data
LNA Gain (dB) 26
Mechanical Data
Available Colours Black
Length (mm) 214
Width (mm) 77
Height (mm) 16.5
Operating Temperature -30 / + 70°C
Mounting Data
Mounting Method Adhesive Pad
Approvals Data
Flame Retardancy UN ECE 118 Compliant
Industry Approvals E11
