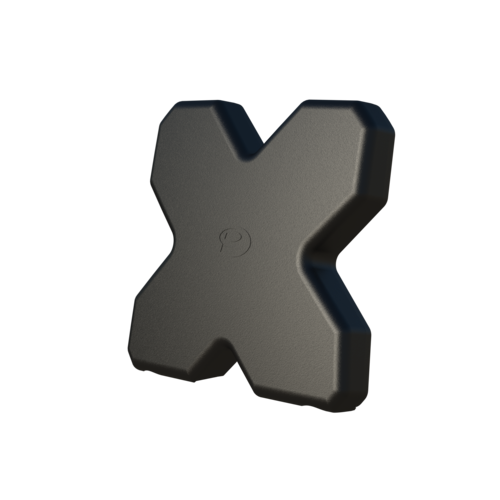

Panorama Antennas DMM-7-38-2SP 4G LTE Multi-Use Portable Antenna, 2x2 MiMo, 2m cable, 2x SMA
- 2x2 MiMo 4G LTE Multi-Use Omni-directional, Portable Antenna
- with 2 x 2m cables and SMA (m) connectors
Compatible with Cradlepoint, Robustel, DrayTek routers and more.
Use the DMM-7-38 to ensure a strong 4G or 3.6GHz 5G connection and fast transfer speeds for your modem or router. It's unique 'X' design enables MiMo connectivity across a huge frequency range and with the options of desk or window mounting the antenna is ideal for use on the move.
This multiband portable antenna is designed to be compact and easy to use. It has feet which allow it to be used freestanding, a suction cup for window mounting, and clips for attachment to a laptop. The is a versatile and compact travel companion to ensure you have excellent signal in all situations.
| Electrical Data | |
| LTE Frequencies | 698-960/1710-3800MHz |
| Typical VSWR | <2.5:1 |
| Peak Gain (dBi) | 4 |
| LTE MiMo | 2x2 |
| Max Input Power (W) | 20 |
| Pattern | Hybrid |
| Ground Plane Independent | Yes |
| Mechanical Data | |
| Available Colours | Black |
| Length (mm) | 151 |
| Height (mm) | 137 |
| Operating Temperature | -30 / +70° C |
| Mounting Data | |
| Mounting Type | Desk Mount; Window Mount; Laptop Mount |
