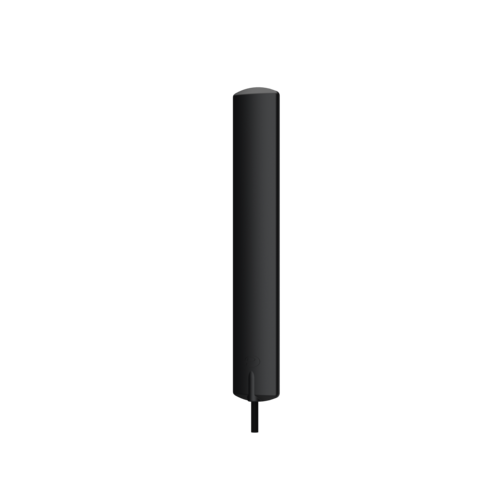

Panorama Antennas EF-BC3G-26-3SP 2G/3G/4G LTE Adhesive Mount Antenna w/ 3m cable and SMA connector
Compatible with 4G routers and signal boosters.
The PWB-BC3G-38-RSMAP antenna is a ground plane independent antenna covering global 2G/3G/4G and 3.4-3.8GHz 5G frequecies from 698-960/1710- 2170 /2500-2700/ 3400-3800MHz.
Designed for terminals and routers the PWB-BC3G-38-RSMAP offers an articulated SMA connector for flexible positioning and a sleek profile for low visual impact.
Works well with Cradlepoint IBR200 / IBR600 / IBR900 series routers.
Electrical Data | |
LTE Frequencies | 698-960/1710-3800MHz |
Typical VSWR | < 3:1 |
Peak Gain (dBi) | 2 |
Max Input Power (W) | 10 |
Pattern | Omni-directional |
Mechanical Data | |
Available Colours | Black; White |
Length (mm) | 41 |
Width (mm) | 7 |
Height (mm) | 163 |
Operating Temperature | -40 / + 80°C |
Mounting Data | |
Mounting Type | Articluated Hinge |
Mounting Method | SMA Plug |
