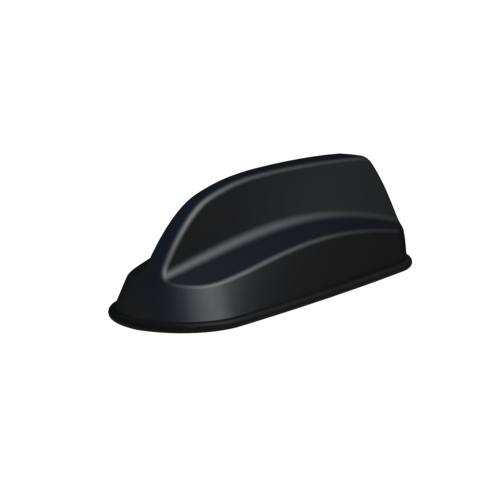

5-in-1 2x2 MiMo 4G LTE + GNSS + 2x2 MiMo WiFi SharkFin Kit w/ 5m cables

Compatible with Cradlepoint IBR900 / IBR1700 series routers


A one size fits all, sharkfin style solution for MiMo Cellular, MiMo WiFi and GPS applications requiring VHF or UHF capability.

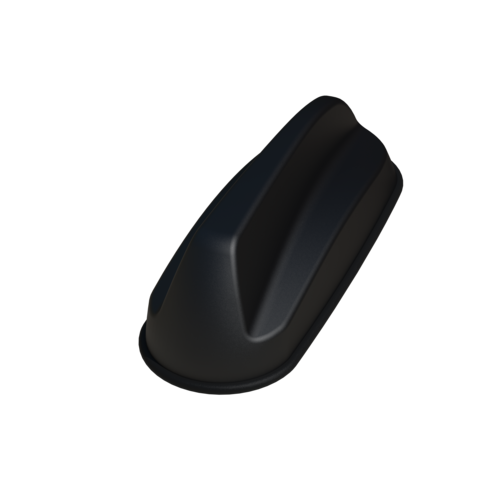

The GPSD 'MiMo Sharkee™' has a compact OEM style shark fin housing that contains 2x2 MiMo antenna function for 4G/3G/2G & 3.8GHz 5G LTE, 2x2 MiMo antenna function for 2.4/5.8GHz WiFi and an active antenna for GPS/GLONASS/Galileo/Beidou with 26dB gain LNA. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF or 700/800MHz antennas.
The GPSD shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost and visual impact whilst protecting a vehicle’s resale value.
IN2440 also contains a complete set of 5 extension cables; two 5m low loss double sheilded cables terminating in SMA plugs for cellular / LTE, two 5m ultra-low loss double shielded cables terminating in reverse polarity SMA plugs for WiFi and a 5m CS23  cable terminating in an SMA plug for GPS/GNSS.

Electrical Data
LTE Frequencies 698-960/1710-3800MHz
Global Positioning GPS / GNSS 1562-1612
Wifi Frequencies MiMo - 2.4/5.0GHz - (Optional)
LTE MiMo 2x2
WiFi MiMo Optional 2x2
Max Input Power (W) 50
Pattern Omni-directional
Global Positioning Data
Frequency Range (MHz) 1562-1612
LNA Gain (dB) 26
Mechanical Data
Available Colours Black
Length (mm) 172
Width (mm) 61
Height (mm) 50
Mounting Data
Mounting Type Panel Mount
Mounting Method 18mm (3/4") Mounting Bush
Whip Mounting M6x0.75
Approvals Data
IP Rating IP66
Flame Retardancy UN118.01 Compliant
