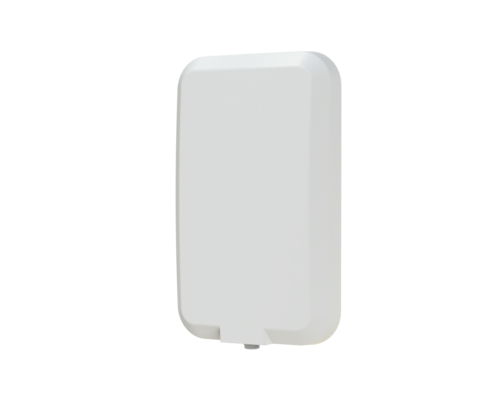

Panorama Antennas WMM4G-6-60-5SP Outdoor Directional Wideband Antenna, 2G/3G/4G/5G, 4 x 5m cables, SMA

  • 4x4 MiMo 5G LTE High Gain Directional Antenna with 4 x 5m cable, SMA connectors
  • Perfect for the Cradlepoint IBR1700 router which has 4 x cellular antenna connectors

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The WMM4G-6-60 is a high directional gain 4x4 MiMo signal boosting antenna for 4G and 5G networks. Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.

  • Supports Cat18/20 (617-960/1710-6000MHz) 4x4 MiMo 4G/5G
  • High Directional gain 6-9dBi
  • Wall Mount or Mast Mount
  • Ideal for Branch Networks and Failover

The weather resistant housing is designed for wall mounting and wall and mast mount brackets are provided. Supplied with fitted low loss double shielded cable for cellular/LTE the WMM4G-6-60 minimises exposed connector joints and simplifies cable management for easy installation.

Electrical Data
LTE Frequencies 617-960/1710-6000MHz
Typical VSWR <2:1
Peak Gain (dBi) 9
LTE MiMo 4x4
Max Input Power (W) 50
Pattern Directional
Mechanical Data
Available Colours White
Length (mm) 507
Width (mm) 307
Height (mm) 87
Operating Temperature -40 / +80° C
Mounting Data
Mounting Type Wall Mount; Mast Mount
Mounting Method Wall Bracket; Mast Clamp; U Bolt; Screw Mount; Flush Mount
Approvals Data
IP Rating IP66
