QNAP QMIROPLUS-201W-AU WiFi Mesh Tri-band SD-WAN Router & NAS, 2 x SSD, GigE WAN and LAN

Next-Generation Tri-Band Wi-Fi Mesh AC2200 2.5GbE NAS and SD-WAN Router

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The QMiroPlus-201W with QNAP Home Cloud 2.0 Solution combines a Mesh Wi-Fi AC2200 router and 2.5GbE NAS to decomplicate your network settings. With two 2.5-inch SATA drive bays and SD-WAN technology, QMiroPlus-201W integrates multi-cloud environments allowing you to centrally manage and access locally-stored and cloud-based files and data, building next-generation networks for homes, offices and remote working.

  • Supports Mesh Wi-Fi Handover, allowing wide-coverage connectivity. Tri-Band Wi-Fi guarantees smooth and stable Wi-Fi connections via 2.4GHz, 5GHz and dedicated Mesh 5GHz frequencies.
  • Supports QTS/QuRouter dual-system with home cloud 2.0 solution for easier NAS applications and routing configuration.
  • Easily and securely connect to your company networks and multi-site VPN using the built-in QNAP SD-WAN solution, QuWAN.
  • Use the QMiroPlus-201W as a home storage and entertainment center with various apps for file management, backup, and multimedia.
  • HybridMount integrates mainstream cloud services and local caching, allowing you to access cloud-based files as if they were stored locally.

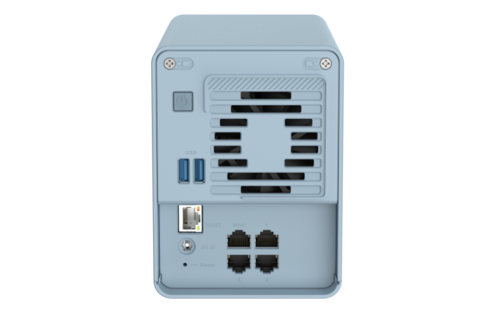

  • One 2.5GbE host management port and four Gigabit ports for flexible LAN and WAN deployment.

Connect your Home or Office with High-Coverage Tri-Band Mesh Wi-Fi
Say goodbye to weak Wi-Fi signals by setting up a Mesh Wi-Fi structure in your home. QMiroPlus-201W adopts Wi-Fi Handover technology, allowing multiple users to be automatically connected to the router with the strongest Wi-Fi signal with a single SSID.

Dedicated Tri-Band Mesh Wi-Fi for Smooth Connections
The QMiroPlus-201W supports Tri-band Wi-Fi of 2.4GHz, 5GHz and a dedicated Mesh Wi-Fi 5GHz band for high-bandwidth connections between Mesh Wi-Fi routers. Unlike conventional dual-band routers whose 5GHz band must be shared between Wi-Fi clients and Mesh Wi-Fi routers, the QMiroPlus-201W guarantees smooth and stable Wi-Fi connections.

File Storage and Backup - Easily to Use
QMiroPlus-201W provides convenient internet storage space for everyone in your family. Simply follow the beginner’s guide to create family accounts, and then invite them to enjoy centralized data storage and real-time backup services.

Convenient connectivity for remote workers
Working from home has transformed the lives and daily practices of workers and businesses alike, but now the challenge is ensuring that we are always securely connected to business IT. QNAP QuWAN is a SD-WAN solution that enables automatic Mesh VPN topology from corporate networks to personal home routers. Once your home QMiroPlus-201W is set up, QuWAN Cloud Orchestrator enables QMiroPlus-201W to connect to the mesh VPN whether in router mode or AP mode. After that, your QMiroPlus-201W is your gateway to the company cloud. You can even mount storage from your company’s NAS to your QMiroPlus-201W for quick and convenient access to important files and data.

Sync and back up your data anytime, anywhere
With Qsync and Hybrid Backup Sync (HBS) you can easily sync and back up your data from anywhere at any time. Qsync enables you to sync data between a QMiroPlus-201W and other end devices, while HBS helps back up data from the QMiroPlus-201W to a QNAP NAS or public cloud storage. Both apps work seamlessly with the QMiroPlus-201W to create a secure cross-device and multi-version backup solution.

Centralize your Cloud Storage
With the File Station app you can centrally manage various cloud storage accounts (including Google Drive and Dropbox), allowing quick and easy access to your files wherever they are stored. QMiroPlus-201W also supports HybridMount cloud storage, allowing you to mount storage accounts from mainstream cloud providers.

Spec.



Number of Ethernet Ports

5

2.5GbE Host Port(RJ45)

1

1GbE (RJ45)

4

CPU

Router: Qualcomm IPQ4019, Quad 4cores ARM Cortex A7@716.8MHz
NAS: Intel Gemini Lake J4125 4cores @2.0Ghz

Memory

Router: 512MB DDR3
NAS: 4GB DDR4

Flash

Router: 4MB SPI NOR Flash+4GB eMMC
NAS:4GB eMMC

Wireless Antenna

4 Internal Antennas

Wireless Standard

802.11a/b/g/n/ac

Wireless Speed Rating

AC2200

Wireless Speed 2.4 GHz

2.4G (400Mbps): 2x2 Dual Band(20/40MHz)

Wireless Speed 5 GHz

5G (867+867Mbps): 2x2 Dual Band(20/40/80MHz), 2x2 Single Band (20/40/80MHz)

Frequency Band 2.4 GHz



Frequency Band 5 GHZ



Wireless Bandwidth

20/40/80MHz

Transmit Output Power

Depends on country code

Wireless Antenna Type

2 Internal dual band(2.4G/5G) antennas
2 Internal single band(5G) antennas

Antenna Gain 2.4 GHz

2.5dBi, 2.6dBi

Antenna Gain 5 GHz

4.6dBi, 4.4dBi

Wi-Fi 5 (802.11ac)



USB 3.2 Gen 1 port

2

Bluetooth

Version 5

Bluetooth Antenna Gain

3.42dBi

Button

Power(for NAS), Reset, WPS

Power

12V DC

Power consumption

60W

Dimensions

183.5x105x143.5

Weight

1.44Kg

Packing weight

2.15Kg

Operating Temperature

0°C ~ +40°C

Operating Humidity

5% to 95% non-condensing

Certifications

JATE / CE / FCC / BSMI / NCC / IC / SRRC / CCC / VCCI / RCM / OFCA

Wi-Fi Mesh

 (with Tri-Band)

QNAP SD-WAN solution, QuWAN

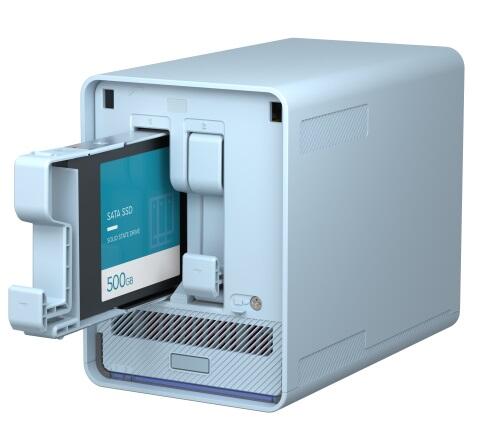

Drive Bay

2 x 2.5-inch SATA 3Gb/s(Compatible with 6Gb/s SSD/HDD)

Drive Compatibility

2.5-inch bays:
2.5-inch SATA solid state drives
2.5-inch SATA hard disk drives
