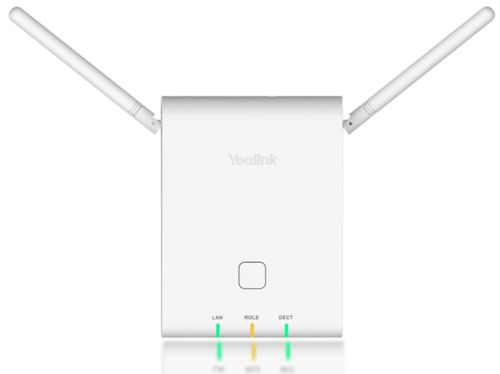

Yealink W90B DECT Base for IP Multi-Cell System

DECT Base for IP Multi-Cell System

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The Yealink W90B is a base station for the W90 Multi-Cell IP System. The W90 system gives you incredible wide area coverage for warehouses, hospitals, supermarkets, cruise ships, office buildings and much more. Each W90 system supports up to 60 base stations, 250 handsets, 250 SIP accounts and 250 concurrent calls. Each W90B base station provides wireless connectivity with an indoor range from 98 to 164 feet or outdoor range of up to 984 feet.

Quick Specs:

  • Communications Protocol: SIP
  • Wireless Range:
  • Indoor: 30 m to 50 m (98 ft to 164 ft)
  • Outdoor: up to 300 m (984 ft)
  • Ethernet: 1x 10/100 RJ45 PoE
  • PoE: 802.3 af Class 1

Up to 60 W90B DECT base stations can be used in a single deployment with seamless handover and roaming.

The Yealink W90 DECT IP Multi-Cell System (W90B and W90DM) offers wasy and fast deployment, wide coverage, stability and the ability to support varios device types. Users can pair their Yealink W53H, W56H, W59R, CP930W, or DD Phone to this DECT system.

  • Supports Air and LAN synchronization
  • Seamless handover and roaming
  • Up to 60 base stations
  • Up to 250 handsets
  • Up to 250 SIP accounts
  • Up to 250 parallel calls
  • Support XML/LDAP/Remote Phonebook
  • Support XSI Directory/XSI Call Log
  • External antenna, DECT radio coverage up to 50m indoors and 300m outdoors
  • Support Opus
  • Support SRTP / SIPS / TLS, LDAP(s) and
  • HTTPS
  • Support PoE
  • Compatible with Yealink W59R/W56H/W53H, CP930W, and DD Phone

In the box:
W90B Base Station
Expansion Screws
Quick Start Guide
