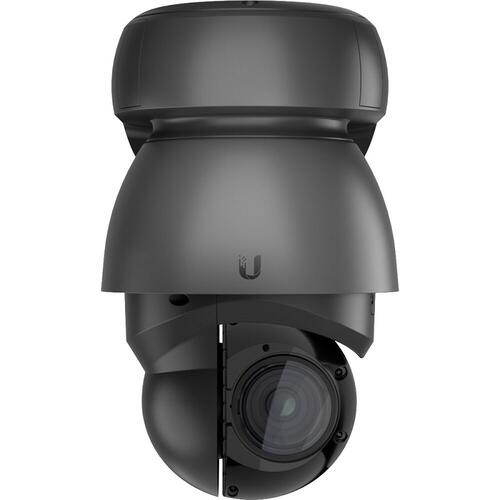

Ubiquiti UVC-G4-PTZ UniFi Protect G4 PTZ Camera
UniFi Protect G4 PTZ is a high-performance pan-tilt-zoom camera with 4K, 24 FPS video streaming, 22x optical zoom, and adaptive IR LED night vision.
G4 PTZ is a superior surveillance camera for shopping centers, parking lots, airports, train stations, and other transportation hubs. Pairing G4 PTZ’s advanced optical and video technologies with UniFi Protect’s ease of use creates a unique solution for the most demanding environments. G4 PTZ comes with IP66 weatherproof casing and flexible powering options.
- 4K, 24 FPS video stream
- 22x optical zoom with F1.5 lens
- Tamper-resistant pan and tilt with servo feedback
- Multi-exposure HDR
- Adaptive IR LEDs, night vision distance up to 100 m
- Flexible power options: 802.3bt PoE++
- IP66 weatherproof rating
- Operating temperature -40° to + 50°C (-40° to +122°F)
- Managed with UniFi Protect application and mobile app
Note: UniFi Protect is required to run this product with full functionality, we recommend using it with UniFi Dream Machine PRO or UniFi Protect Network Video Recorder.
Works with UniFi Protect Application
Fully featured user interface
Plug-and-play installation
Mobile-based camera management
Motion detection and event recall
Easily integrated into existing Protect deployment
And much more
Note. Power Supply not included
Mounting Hardware is included
Sensor |
Sony 4K (8 MP) 1/1.8" CMOS Sensor |
Lens |
22x Optical Zoom |
View Angle |
H: 3 to 64deg, V: 2 to 37deg |
Night Mode |
Built-in IR LED Illumination and IR Cut Filter |
Video Compression |
H.264 |
Resolution |
4K2K (3840 x 2160) |
Maximum Frame Rate |
24 FPS |
Processor Specs |
Ambarella S5L66 |
Memory Information |
1 GB |
Networking Interface |
RJ45, 10/100/1000 Mbps Gigabit Ethernet |
Flash Memory Support |
256 MB |
Max. Power Consumption |
42.9W |
Power Method |
802.3bt PoE++ (Not Included) |
Supported Voltage Range |
802.3bt PoE++ |
Button |
Factory Reset |
Mounting |
Wall Mount(Kit Included) |
Operating Temperature |
-40 to 50deg C |
Operating Humidity |
0 to 90% Noncondensing |
Certications |
FCC, IC, CE |
Controller Software |
UniFi Protect |
Mobile Apps |
UniFi Protect iOS and Android |
Dimensions |
207 x 223.7 x 341.3 mm |
Weight |
Without Mount: 3.8 kg (8.38 lb), With Mount: 6.8 kg (14.99 lb) |
Enclosure Materials |
Metal and Plastic |
Mount Material |
Metal |
IP Rating |
IP66 |
