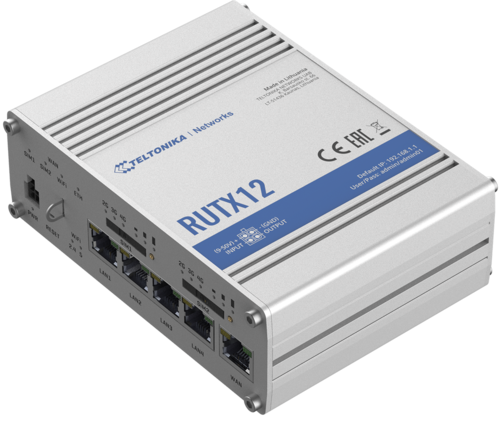

Teltonika RUTX12 4G (LTE) CAT 6, Dual SIM Cellular & UFB router with 4x GigE, 802.11ac
Powerful Dual LTE Cat 6 router is designed for mission critical applications.
Two simultaneously operational LTE CAT 6 modems can provide speeds up to 600 Mbps with load balancing feature. This makes this device irreplaceable in applications where loosing connection is not an option.
- Two LTE modules working simultaneously can provide speeds up to 600 Mbps
- Instant failover switching
- 5 x Gigabit Ethernet with speeds up to 1000 Mbps
- Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
- Teltonika Remote Management System compatible
- Easy to use, secure and feature rich OpenWrt based Operating System
The Teltonika RUTX12, a powerful Dual LTE Cat 6 router is designed for mission critical applications. Two simultaneously operational LTE Cat 6 modems can provide speeds up to 600 Mbps with load balancing feature. 5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual Band WiFi, Bluetooth LE and USB interfaces with RutOS software and security features make this device irreplaceable in applications where loosing connection is not an option.
This router offers many functionalities and possibilities such as:
- Auto switch of modem with weak signal from SIM card
- Load balancing
- When the limit of SIM card 1 is reached, switch to SIM card 2
- Least cost routing in case of roaming
- Automatic failover with dual modem
Add remote access and management with Teltonika Networks Remote Management System (RMS).
RMS is an all-in-one user-friendly IoT platform providing a smart way to stay on top of your whole connected solution completely remotely, securely, and reliably.
It is a powerful solution for remote access and management allowing users to save time and operational costs while being flexible and easy to use. With RMS you can manage compatible Teltonika Networks routers and gateways, reach remote devices, utilize the power of remote desktop access and configure secure VPN tunnels with just a few clicks.
Try it for free - https://rms.teltonika-networks.com/account/register
Specifications
Download speed: up to 300 Mbps per modem
Upload speed: up to 50 Mbps per modem
4G frequencies: LTE FDD: B1, B3, B5, B7, B8, B20, B28, B32
4G frequencies: LTE TDD: B38, B40, B41
3G frequencies: B1, B3, B5, B8
Wireless 802.11b / g / n / ac (WiFi 5)
Carrier Aggregation
1 x Gigabit WAN / LAN port
4 x Gigabit LAN port
4 x antenna connection 4G (SMA)
2 x antenna connection WiFi (RP-SMA)
1 x antenna connection GPS (SMA)
1 x antenna connection Bluetooth (RP-SMA)
4 pin DC connection with 1 x Input and 1 x Output
Can be used with Remote Management System (RMS) and Teltonika router app
DIN rail mounting possible (both back and side)
Dimensions: 132 x 44 x 95 mm
Weight: 540 grams
What’s in the Box
Teltonika RUTX12
4 x LTE antennas (swivel, SMA male)
2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m)
1 x GNSS antenna (adhesive, SMA male, 3 m cable)
1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m)
SIM needle
24 W Euro PSU
Ethernet cable (1.5 m)
QSG (Quick Start Guide)
