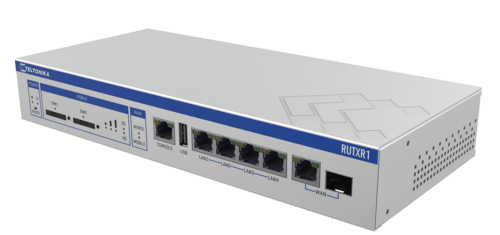

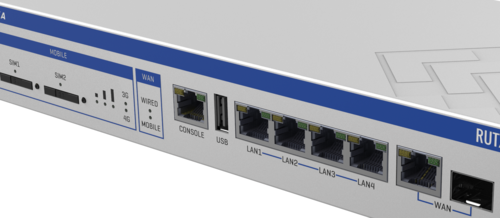

Teltonika RUTXR1 CAT 6 LTE router, rackmount, dual power, 5x GigE, SFP

CAT 6 LTE router, rackmount, dual power, 5x GigE, SFP
  • 5 x Gigabit Ethernet ports
  • Dual SIM: With auto failover, backup WAN and other switching scenarios
  • WiFi: Wave-2 802.11ac Dual Band WIFI
  • 4G LTE CAT 6: Cellular speeds up to 300Mbps with Carrier Aggregation

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The RUTXR1 is Teltonika’s first rack mounted 4G router that is suitable as a primary internet router as well as a backup.

  • 5 x Gigabit Ethernet ports
  • Dual SIM: With auto failover, backup WAN and other switching scenarios
  • SFP port for long-range Fiber-optic communication
  • Compatible with Teltonika Remote Management System
  • WiFi: Wave-2 802.11ac Dual Band WIFI
  • 4G LTE CAT 6: Cellular speeds up to 300Mbps with Carrier Aggregation

Teltonika RUTXR1 – Enterprise Rack-Mountable SFP/LTE Router
Teltonika RUTXR1 is the first-ever rack-mounted LTE Cat6 router with redundant power supplies and WAN interfaces, which can be conveniently placed in a server cabinet. It is equipped with dual SIM, USB, and Wave-2 802.11ac Dual Band WIFI. But what makes this product stand out from the rest of Teltonika Networks products are the SFP WAN and dedicated console ports. The unique feature set of this product allows using it as a primary product in a small or home office with LTE backup capabilities, powerful WiFi, and no need for an additional SFP to Ethernet converter.

This feature-rich device is powered by RutOS and is a perfect choice, where a speedy and ultra-reliable connection is required!

Add remote access and management with Teltonika Networks Remote Management System (RMS).

RMS is an all-in-one user-friendly IoT platform providing a smart way to stay on top of your whole connected solution completely remotely, securely, and reliably.

It is a powerful solution for remote access and management allowing users to save time and operational costs while being flexible and easy to use. With RMS you can manage compatible Teltonika Networks routers and gateways, reach remote devices, utilize the power of remote desktop access and configure secure VPN tunnels with just a few clicks.

Try it for free - https://rms.teltonika-networks.com/account/register

Specifications
Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – up to 42 Mbps
Wireless mode: 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WAN: 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Fiber: 1 x SFP port (cannot work simultaneously with Ethernet WAN port)
LAN:  4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
RAM: 256 MB, DDR3
Power: 2 x 4 pin DC connector
Antennas: 2 x SMA for LTE, 2 x RP-SMA for WiFi
Dimensions: 272 x 42.6 x 122.6 mm (W x H x D)
Weight: 1050 g


What’s in the Box
RUTXR1 Router
2 x LTE antennas (magnetic mount, SMA male, 3 m cable)
2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
Rack – mounting kit
SIM needle
18W PSU
Ethernet cable (1.5 m)
QSG (Quick Start Guide)
