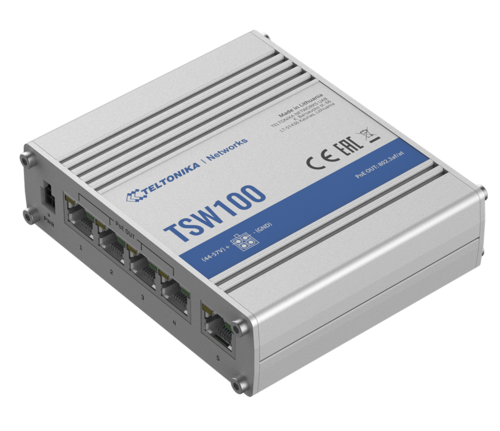

Teltonika TSW100 5-Port Industrial Gigabit Ethernet PoE Switch, 4x 802.3af/at PoE Ports

Unmanaged Desktop 5 Port Gigabit PoE+ Switch

The Teltonika TSW110 5-Port Unmanaged Desktop Gigabit PoE+ Switch delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as access points and IP cameras. It supports both PoE (802.3af) and PoE+ (802.3at) devices with a 120 Watt PoE budget. This sturdy metal switch is Plug and Play for reliable high speed PoE networking.

• Five (5) RJ45 10/100/1000 Mbps ports.
• Ports 1- 4 feature 802.3at output.
• Full aluminum housing.
• PoE Max Power per Port: 30W
• Total PoE Power Budget: 120W
• Mounting: DIN rail or Wall

Specifications

LAN

5 x LAN port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
POE

PoE ports

Port 1- 4
PoE standards

802.3af and 802.3at
PoE Max Power per Port (at PSE)

30 W
Total PoE Power Budget (at PSE)

120 W

POWER

Connector

4 pin industrial DC power socket
Input voltage range

7-57 VDC
Input voltage range for PoE

44-57 VDC
Power consumption (idle/max no PoE/max)

2W / 9W / 129W

PHYSICAL INTERFACES (PORTS, LEDS)

Ethernet

5 x RJ45 ports, 10/100/1000 Mbps
Status LED’s

1 x Power LED, 10 x LAN status LED’s
Power

1 x 4 pin DC connector
Ground

1 x Grounding screw

PHYSICAL SPECIFICATION

Casing material

Full aluminum housing
Dimensions (W x H x D)

115 x 32 x 95 mm

Mounting

DIN rail or wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

Operating temperature

-40 °C to +75 °C
Operating humidity

10 % to 90 % non condensing

Package Contents

1 x Teltonika TSW100
1 x 65W PSU
1 x QSG (Quick Start Guide)
1 x Packaging box
