  • Gigabit Bi-directional SFP module, TX1550/RX1310nm, Single-mode, 20KM

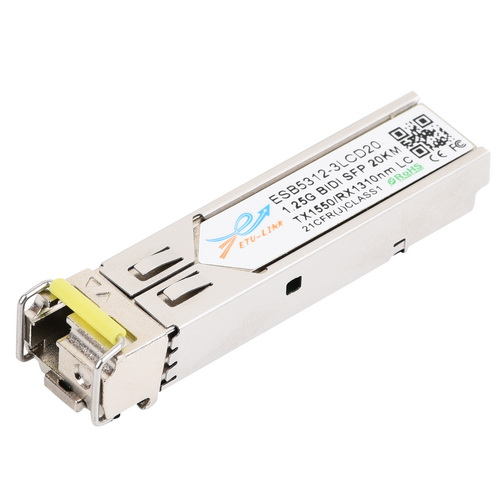

ETU-LINK ESB5312-3LCD20 Gigabit Bi-directional SFP module, TX1550/RX1310nm, Single-mode, 20KM

Gigabit Bi-directional SFP module, TX1550/RX1310nm, Single-mode, 20KM

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

1.25Gbps SFP Bi-Directional Transceiver, 20KM Reach, LC Connector
Tx1550nm/Rx1310nm  (use in conjunction with ESB3512-3LCD20 Tx1310nm/Rx1550nm SFP module)

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20KM transmission distance with SMF.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.

  • Dual data-rate of 1.25Gbps/1.063Gbps operation
  • 1550nm DFB laser and PIN photodetector for 20KM transmission
  • Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
  • Compatible with SONET OC-24-LR-1
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature range:     0 °C to +70 °C (Commercial),      -40 °C to +85 °C (Industrial)

Applications
Gigabit Ethernet Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

  • DATA RATE:1.25G
  • WAVE LENGTH:TX1550/RX1310nm
  • DISTANCE:20KM
  • CONNECTOR:LC
  • FIBER:SM
  • DDM:YES
