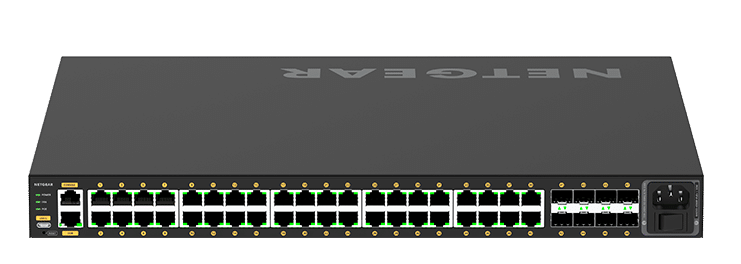

  • AV Line Managed PoE+ Switch, 40x1G POE+, 8xSFP (M4250-40G8F-PoE+)

NETGEAR GSM4248P-100AJS AV Line Managed PoE+ Switch, 40x1G POE+, 8xSFP (M4250-40G8F-PoE+)

AV Line Managed PoE+ Switch, 40x1G POE+, 8xSFP (M4250-40G8F-PoE+)

Pre-configured for out-of-the-box use


Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

•             40-port 10/100/1000BASE-T (RJ45) PoE+ with 480W PoE budget
•             8-port 1000BASE-X (SFP)
•             96 Gbps non-blocking fabric across 48 ports
•             Out-of-band 1G Ethernet management port
•             USB-C and RJ45 RS232 console ports and USB-A storage port
•             Front black display panel and all ports in the back
•             Possible reversed mounting with ports in the front
•             Rack-mounting standard brackets
•             Longer brackets for recessed mounting (2 inches / 5 cm)
•             Threaded hole in front (1xM10) for clamps
•             Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
•             Selectable fan modes for fanless, quiet, or cool operation
•             Dimensions (WxDxH): 440 x 43.2 x 400 mm
•             Weight: 5.85Kg

Pre-configured for out-of-the-box use
NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.

Rackmount versatility
1U, 400mm deep rackmount with all power and Ethernet ports on the back
Reversed mounting possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables
Universal mounting availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes
Fanless functionality
Quiet mode with 47dB@25ºC, or fanless mode when PoE load and temperature allow

Multi-switch audio or single-switch video deployments
40x1G PoE+ with 480W PoE budget with 8xSFP 1G fiber uplinks
Layer 2/Layer 3 Switching
Common Layer 2 and Layer 3 switching engine across all M4250 models
Control methods abound
Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series
Standard network features
Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2

Primary Port Speed : 1 Gigabit
Number of Ports : 48 (40x 1G PoE+, 8x SFP)
PoE Ports / Budget : 40 PoE+ (30W/port), 480W Budget
IGMP Support : Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support : Yes, up to 12kb
AVB Support : Yes. Electronic license required, activation key sent via email (AVB4248P-10000S).
Acoustics : Fanless or 47dB@25ºC
Power Consumption : With PoE: 624.8W/2133.07Btu/hr; Without PoE: 59.5W/203.13Btu/hr; Standby without any port connection: 46.4W/158.41Btu/hr
