  • 24-Port Gigabit L2+/L3 Lite Managed PoE+ Switch, 4 SFP, 802.3af/at PoE

Edgecore ECS4100-28P 24-Port Gigabit L2+/L3 Lite Managed PoE+ Switch, 4 SFP, 802.3af/at PoE

24-Port Gigabit L2+/L3 Lite Managed PoE+ Switch, 4 SFP, 802.3af/at PoE

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

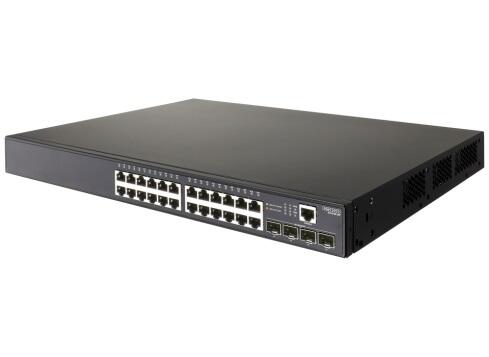

The Edgecore ECS4100-28P switch is a 24-port PoE Gigabit Ethernet access switch with 4x 100M/1G uplink SFP ports.

• Performance and Scalability with 56 Gbps switching capacity
• Continuous Availability - IEEE802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol and IEEE 802.3ad Link Aggregation Control Protocol (LACP).
• Comprehensive QoS - Traffic is prioritized according to 802.1p and DSCP, Weighted Round Robin (WRR) and strict priority ensure differential prioritization of packet flows and avoid congestion of ingress and egress queues.
• Enhanced Security with Port security limits, IEEE 802.1X port-based or MAC-based access control, DHCP snooping, Access Control Lists (ACLs), DAI (Dynamic ARP Inspection), Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) providing secure network management.
• Simple Management with an industry-standard command-line interface (CLI)
• Green Ethernet

Specifications:
Port:
• RJ45 10/100/1000 BASE-T Ports: 24
• 100/1000 SFP Ports: 4
• 10/100/1000 Combo Ports: 0
• SFP+ 10 Gigabit Uplink Ports: 0
• GE out-of-band Management Port: No
• RJ45 Console Port: 1

Performance:
• Switching Capacity: 56Gpbs
• Forwarding Rate: 41.7Mpps
• Flash Memory: 32MB
• DRAM: 256MB
• MAC Address Table Size: 16K
• Jumbo Frames: 12KB
• Auto-negotiation, Auto-MDI/MDIX: Yes
• Acoustics: 53dB (A)
• MTBF: 366,322hrs

PoE:
• Ultra PoE 60W: N/A
• PoE+ based on IEEE 802.3bt/802.3af/802.3at: Yes
• Auto disable after exceeding power budget: Yes
• Dynamic Power Allocation: Yes
• PoE Power Budget: 190W

Power Supply:
• 100V~240V AC, 50/60Hz: Yes
• Max System Power Consumption: 260W

Environmental:
• Operating Temperature: 0ºC~50ºC
• Storage Temperature: -40ºC~70ºC
• Operating Humidity (non-condensing): 10%~90%
• Storage Humidity (non-condensing): 10%~90%
• Environmental Regulation Compliance: WEEE: Yes
• Environmental Regulation Compliance: RoHS: Yes

Certification:
• FCC Class A: Yes
• CE: Yes
• Safety Compliance: CB: Yes
• Safety Compliance: UL: Yes

Physical Configuration:
• Dimensions (W x D x H): 44.2x33.0x4.36cm
• Weight: 3935g
