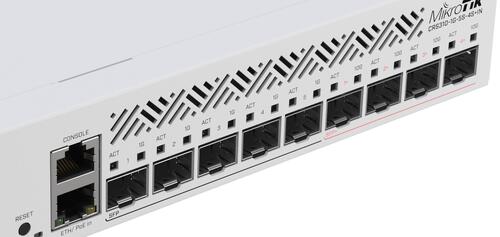

MikroTik CRS310-1G-5S-4S+IN Multi-Gigabit Router Switch, 5 x 1G SFP, 4 x 10G SFP+, 1 x GigE Ports
- 10 Gigabit fibre connectivity.
- Hardware offloaded VLAN-filtering and
- L3 routing on a budget
This switch is an indoor variation of the prominent netFiber 9 switch – used by many small and medium ISPs for reliable 10 Gigabit fibre connections stretching over a 100 meters. With five 1G SFP ports, four 10G SFP+ ports, and an additional Gigabit Ethernet port, this is the perfect upgrade for existing CRS212 setups. You’re getting the modern ARM v7 CPU, 256 MB of RAM, and better cooling. The new Marvell switch-chips bring phenomenal performance to the table!
The Gigabit Ethernet port has a direct connection to the switch chip – so you can enjoy full gigabit speed there. And it supports PoE-in, giving you an additional powering option in tricky spots.
You can mount this switch in a standard 1U rack to keep everything organized. And it has all the power you would expect from a rackmount device: CRS310 supports hardware offloaded VLAN- filtering. And even some hardware offloaded Layer-3 routing.
CRS310-1G-5S-4S+IN is a fantastic tool for anyone working with indoor connections over 100 meters while keeping data loss and ping low. Optical fiber can be a great alternative to copper if you are worried about electromagnetic interference, tampering or eavesdropping.
Dimensions 200 x 166 x 45 mm
RouterOS license 5
Operating System RouterOS
Powering Details:
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 18-57 V
Max power consumption 20 W
Max power consumption without attachments 8 W
Cooling type 1 fan
PoE in 802.3af/at
PoE in input Voltage 18-57 V
Ethernet Details:
10/100/1000 Ethernet ports 1
Fiber Details:
SFP ports 5
SFP+ ports 4
Peripherals:
Serial console port RJ45
Other:
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals:
Certification CE, EAC, ROHS
IP 20
Included parts
K-48 fastening set
Ears
24V 1.2A power adapter
