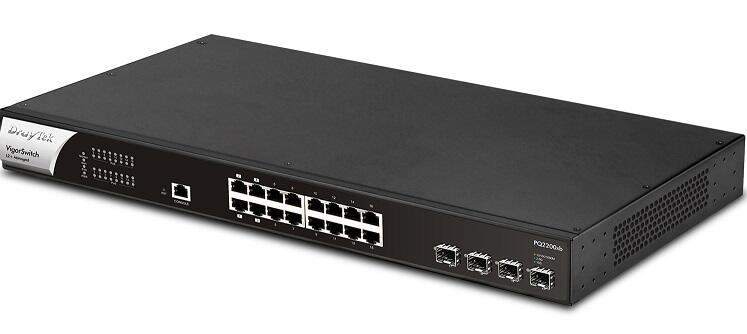

DrayTek PQ2200XB 20-port Managed PoE++ switch, 16x 2.5GbE, 4 x SFP+
PoE++ (400W) L2+ Managed Switch
- 4 x 10GbE SFP+ slots
- 4 x 2.5GbE ports with PoE++ PSE
- 12 x ports with PoE+ PSE
- 1 x Console port
20 port Layer 2+ Managed PoE Gigabit Switch
- 4 x Gigabit Ethernet PoE++ Ports (up to 90 Watts per port)
- 12 x Gigabit Ethernet PoE/PoE+ (802.3af/at), up to 30 Watts per port
- 4 x Gigabit RJ-45/SFP Combo Ports
- 1 x RJ-45 Console Port
- PoE power budget of 400 watts
+ PoE Scheduling & Ping watchdog power cycle
+ 160 Gbps switching capacity
+ Port based and 802.1q tagged VLANs (MAC address, and protocol)
+ Voice and Surveillance VLANS with QoS (OUI Mode) providing improved call and video quality
+ ONVIF (Open Network Video Interface Forum) compliant
+ QoS with 8 queues for traffic prioritisation
+ Enterprise-Level security features
+ 802.1x Port Security, ACL, IP Source Guard and DHCP Snooping
Access Control (IPv4, IPv6 and MAC address)
IP Conflict Prevention to avoid IP conflicts caused by misconfigured or malicious hosts
+ Support IPv6 with MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver
+ Authentication by local database, multiple RADIUS, and TACACS+ servers
+ IEEE 802.3az (Energy-Efficient Ethernet) Compliant
+ Support SNMP v1/v2c/v3, RMON, and Syslog for network monitoring
+ Port Mirroring & Link Aggregation
+ Compliant with Central Switch Management features of DrayTek Vigor devices for simplified network management Learn more
+ Compliant with VigorConnect free software for local network management Learn more
+ Supports VigorACS 3 Central Management Software for remote management

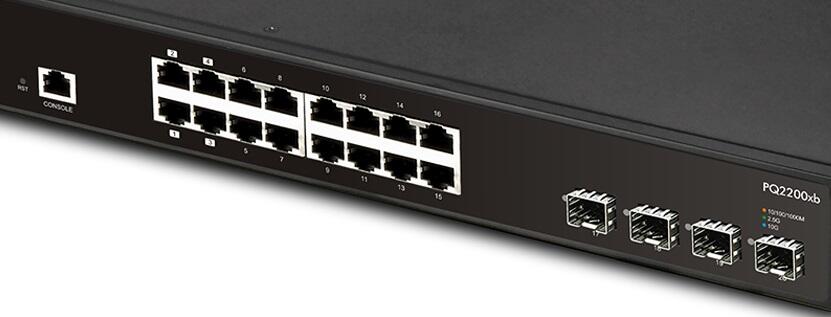

DrayTek VigorSwitch PQ2200xb features 16 x 2.5GbE ports for LAN and 4 x 10G SFP+ for uplink/downlink. It has 4 x PoE++ ports providing up to 90W per port and 12 x PoE+ ports. With a total of 400W output, it is ideal for business applications with IoT devices, such as LED lighting, POS (point of sale) computer, sensors, IP cameras, etc.
When configured with WiFi6 VigorAPs (e.g., VigorAP 1060C), VigorSwitch PQ2200xb can bring full WiFi 6 capability and features to LAN clients. Furthermore, it supports advanced Layer 3 features, DHCP Server, and VLAN Routing, to improve network efficiency and ensure that the LAN network continues to work even if the gateway is offline. Therefore, this switch is well placed to be the core switch in most SME/SMB networks.
Key Features
PoE++ (802.3bt)
Deliver up to 90W over one Ethernet cable. Turn on/off the PoE device periodically with PoE Schedule.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritising it with CoS, DSCP, and IP Precedence tag.
Ping Device Check
Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.
ONVIF-Friendly
Recognise ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
2.5GbE
Provides higher performance to WiFi 6 AP and other Ethernet devices.
IPv6 Ready
VigorSwitch PQ2200xb supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo
Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch PQ2200xb to route the inter-VLAN traffic directly and offload the router.
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.
Auto Surveillance & Voice VLAN
Recognise traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritisation.
Central Switch Management
Set up VLANs easily from the router and get a centralised hierarchy view of the switches. Learn more
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
ONVIF-Friendly
Recognise ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance
Centralised Hierarchical View
The VigorSwitch PQ2200xb automatically detects ONVIF devices and displays the topology of connected IP cameras and NVRs.
Image Viewing
Images filmed by IP cameras can be viewed directly within the VigorSwitch PQ2200xb web UI.
Device Management
Basic configuration/maintenance tasks for ONVIF devices such as remote reboot, factory reset and changing network settings can all be done remotely from the VigorSwitch PQ2200xb web UI.
ONVIF Snapshot Alert
Locating Non-Responding IP Cameras Made Easy
Managing a network of IP cameras across different locations is difficult, as when any of the cameras stop functioning, there is no easy way to detect or revive it. To help with this problem, the VigorSwitch PQ2200xb regularly pings ONVIF IP cameras and takes snapshots from them periodically. If one IP camera stops responding, an email alert is sent with the latest snapshot from the camera.
With PoE VigorSwitch models, the switch can also provide first aid by automatically power cycling the particular port to reboot the camera.
IP Conflict Detection & Prevention
Conflict Detection
The VigorSwitch constantly checks the network environment and notifies the administrator of any IP conflicts.
Conflict Prevention
For a more stable network, the VigorSwitch detects misconfigured or malicious IP hosts and blocks them before damages are done.
In-the-Box
VigorSwitch PQ2200xb
Rack Mount Kit
Console Cord
Power Cord
