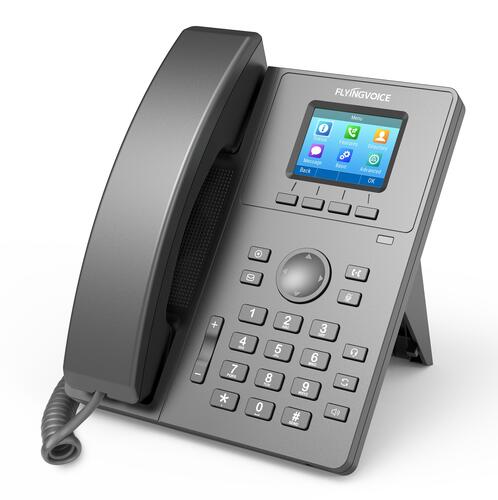

FlyingVoice P11P Basic SIP Phone, 10/100Mbps Ethernet, PoE, Colour Screen

This easy-to-use colour screen IP phone can help you improve work efficiency and ensure high-quality voice communication.  Equipped with a 2.4-inch 320*240px color display with an adjustable backlight, it provides users with high-resolution graphics and a colourful experience. The P11P supports 2 SIP accounts, integrated 100M dual Ethernet ports, and PoE for easy network connection. And it supports HD voice technologies including wideband codec G.722 and opus for high-quality calls. In addition, it is easy to set up at 60 and 45 angles on a desk or 15-angle mount on the wall, meeting different application scenarios.

All-new Design, Practical details
P11P provides a new intuitive interface design and a 2.4-inch 320*240px color display with an adjustable backlight, which brings a clear and colorful visual experience to users.
HD Voice Quality, Better Calling Experience
Featuring HD voice technologies Wideband Codec G.722 and Opus, the P11/P11P delivers excellent sound quality and allows fluent conversations.
Online Management Platforms, Easy Deployment
P1X Series IP phones support simple-to-deploy and easy-to-manage by Flyingvoice’s online platforms such as FACS and FRPS and auto-provisioning modes TFTP/HTTP/HTTPS, making mass deployment and maintenance extremely easy.
High Security, Strong Compatibility
P1X Series IP phones are well protected by configuration files with AES, SRTP and TLS call encryption, etc. They are widely compatible with SIP based devices and PBX platforms such as Broadsoft, Metaswitch and Yeastar, etc.

• 2.4” 320*240px color display with an adjustable backlight
• 2 x 10/100 Mbps Ethernet port
• 6-Way audio conferencing
• 2 SIP accounts
• HD voice
• Support RJ9 headset
• Support PoE (P11P only)

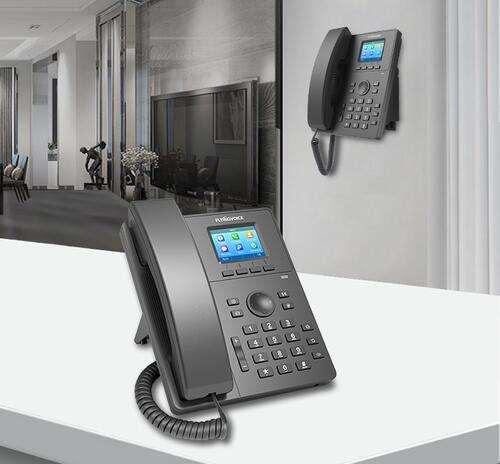

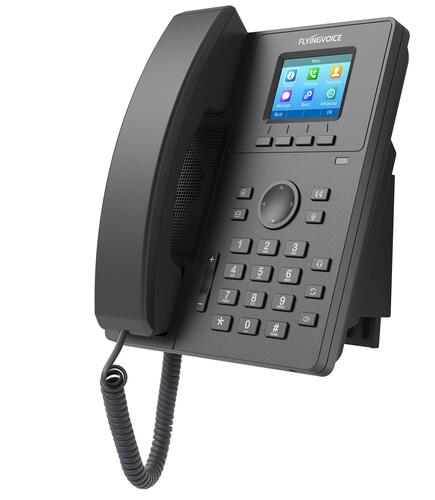

• Wall mountable
• Stand with 2 adjustable angles
• Opus

Phone Features
LCD Screen > 2.4” 320*240px color display with an adjustable backlight
> 16-bit depth color
Function Keys > 7 Function Keys: message, headset, transfer, mute, redial, hands-free speakerphone, record
> 4 Soft Keys, 4 navigate Keys, volume+/-
SIP Accounts > 2 SIP accounts
Wi-Fi > Not supported
USB Port > Not supported
Ethernet Ports > 2*10/100M (adaptive)
> Supports PoE
Other Ports > 1 x handset port, 1 x RJ9 headset port
Call Features
Basic Function > Call hold, mute, DND, redial, auto answer, one-touch speed dial, Hotline, SMS, call forward, call waiting, Call transfer (attended/blind), paging, voice mail, anonymous call, anonymous call rejection, message waiting indicator (MWI)
Direct IP Call > Supported
Phone Book > 2000 records; phonebook search/import/export; XML/LDAP remote phonebook; black list
Call History > 60 records; call history: all/missed/dialed/received
6-Way Audio Conferencing > Supported
Audio Features
HD Voice > HD handset, HD speaker
Audio Codec > G.722, Opus, AMR-WB(Optional), G.711WB(Optional), G.711(A/u), iLBC, G.729A/B, G.723, G.726, AMR-NB(Optional)
DTMF > In-band, RFC 2833, SIP info
Network
Network Safety > SIP Related Features:
- SIP v1 (RFC2543), v2 (RFC3261), NAT Traversal by STUN
- SIP link mode: proxy mode and peer-to-peer SIP link mode
- Call server redundancy supported
> Network Features:
- Static IP and DHCP, IPv4 /IPv6, Dual stack IPv4/IPv6, ARP/RARP, DNS A/DNS SRV/DNS NAPTR,
- LLDP/CDP/DHCP VLAN; IEEE802.1X; OpenVPN; DSCP, 802.1p QoS
> Time and Date Synchronization: SNTP, PBX, DHCP
> Transport: UDP/TCP/TLS; RTP/RTCP/SRTP
Configuration & Maintenance
Auto-provision > TR069 (TR104/TR106)
> FTP/TFTP/HTTP/HTTPS for Auto Provisioning
> Cloud device management: FACS
> Cloud device management: FRPS
> DHCP Option66
Configuration > Supports Web configuration
> Factory reset, reboot
> Packet capture, system log
Others
 Physical Features > New Stand, wall mountable
> AC/DC Adapter, AC Input: 100~240V, 50~60Hz
> DC Output: 5V, 1A
> Power consumption (PSU): 0.87~1.18W
> Power consumption (PoE): 0.72~1.78W
> Relative humidity:10%~90% (No Condensing)
- Storage temperature: -25~ 65°C
- Operation temperature: 0~45°C
> Dimension (W x D x H): 200mm × 165mm × 47mm
Package Content
Details Packing List:
> Flyingvoice P11P IP phone
> Handset with handset cord, Ethernet cable, stand
> Quick Start Guide
