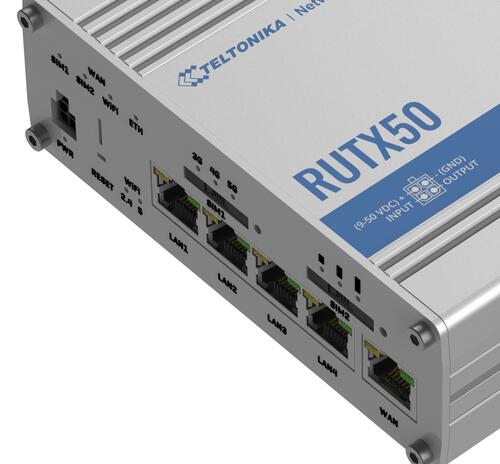

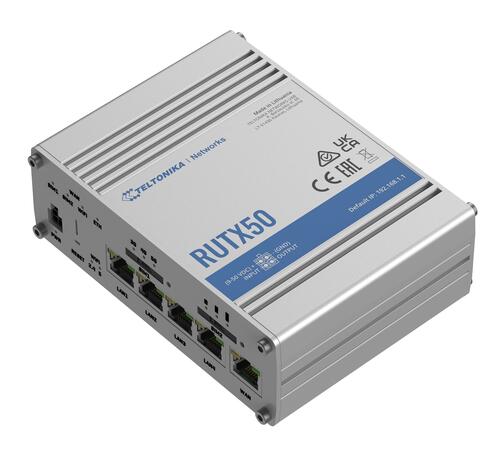

Teltonika RUTX50 5G Cellular & UFB Router, with 5x GigE, 802.11ac WiFi, Dual SIM

5G
Ultra-high cellular speeds of up to 3.3 Gbps

SA & NSA
Supports both architectures to leverage the 5G infrastructure

ULTRA-LOW LATENCY
Single-digit latency for mission-critical applications

DUAL SIM
Uninterrupted communication with auto-failover

WI-FI 5
Dual-band data throughput for up to 150 clients simultaneously

FUTURE-PROOFING
Backward compatible with 4G (LTE CAT 20) and 3G network technologies

// RUTX50 is your future-proof, multi-network industrial router, offering 5G mobile communication for high-speed and data-heavy applications.

// 5G dual SIM cellular communication combined with 5 Gigabit Ethernet ports and dual-band Wi-Fi enables reliable ultra-low latency data transfer.

// The power of 5G technology, combined with a wide range of interfaces and industrial hardware features, ensures adaptability for future upgrades and expansions.

// RUTX50 comes with the RutOS, which provides advanced security features and specialized industrial protocols for a wide range of professional application scenarios, and is compatible with our Remote Management System (RMS), for optimized remote management and monitoring capabilities of large fleets of devices.

- Add remote access and management with Teltonika Networks Remote Management System (RMS).

RMS is an all-in-one user-friendly IoT platform providing a smart way to stay on top of your whole connected solution completely remotely, securely, and reliably.

It is a powerful solution for remote access and management allowing users to save time and operational costs while being flexible and easy to use. With RMS you can manage compatible Teltonika Networks routers and gateways, reach remote devices, utilize the power of remote desktop access and configure secure VPN tunnels with just a few clicks.

Try it for free - https://rms.teltonika-networks.com/account/register

MOBILE
Mobile module 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID.
SMS/Call SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list
Band management Band lock, Used band status display
APN Auto APN
Bridge mode Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Gateway assigns its mobile WAN IP address to another device on LAN
Multiple PDN Possibility to use different PDNs for multiple network access and services
WIRELESS
Wireless mode 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID ESSID stealth mode
WiFi users Up to 150 simultaneous connections
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built-in customizable landing page
Wireless mesh/roaming Wireless mesh (802.11s), fast roaming (802.11r)
ETHERNET
WAN 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 4 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
NETWORK
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation
DDNS Supported >25 service providers, others can be configured manually
SSHFS Possibility to mount remote file system via SSH protocol
SECURITY
Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile quota control Set up custom data limits for SIM card
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
GRE tunnel GRE Tunnel
IPsec IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
SSTP SSTP client instance support
STUNNEL Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
PPTP, L2TP Client/Server services can run simultaneously, L2TPv3 support
WireGuard WireGuard VPN client and server support
ZeroTier ZeroTier VPN
MODBUS TCP SLAVE
ID filtering Respond to one ID in range [1;255] or any
Allow remote access Allow access through WAN
Custom registers MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality
MODBUS TCP MASTER
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
MQTT GATEWAY
Gateway Allows sending commands and receiving data from MODBUS Master through the MQTT broker
DNP3
Supported modes TCP Master, DNP3 Outstation
DATA TO SERVER
Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
IoT PLATFORMS
Clouds of things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
CALL Reboot, Status, Mobile data on/off, Output on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB (100 MB available for userspace)
FLASH storage 256 MB (80 MB available for userspace)
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
LOCATION TRACKING
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
Server software Supports server software: TAVL, RMS
Geofencing Multiple configurable geofence zones
USB
Data rate USB 2.0
Applications Samba share, USB-to-serial, Modbus gateway
External devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
INPUT/OUTPUT
Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events SMS, Email, RMS
I/O juggler Allows setting certain I/O conditions to initiate event
POWER
Connector 4-pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (passive) Mode B, LAN1 Port, 9 - 50 VDC
Power consumption Idle: <4 W, Max: <18 W
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
I/Os 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs
SIM 2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power 1 x 4-pin DC power connector
Antennas 4 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material Aluminum housing
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 533 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 °C to 75 °C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
