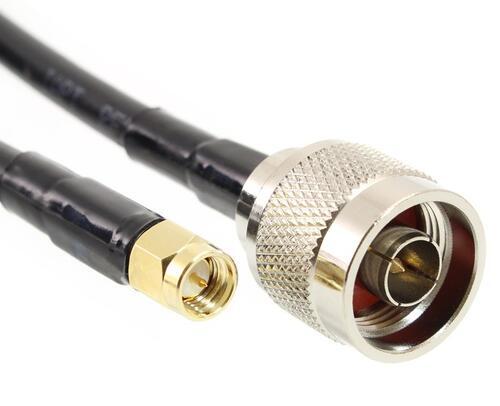

Panorama Antennas C29NP-20SP 20 meter N-Male to SMA-Male CS29 Cable for Cellular Routers

20 meter N-Male to SMA-Male CS29 Cable for Cellular Routers

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

20 meter N-Male to SMA-Male CS29 Cable for Cellular Routers

  • CS29 cable is a double shielded cable designed for outdoor use and is UV and water resistant.
  • Panorama Antennas' CS29 cable offers all the performance and flexibility associated with RG58  but with far less attenuation.
  • The CS29 coaxial cable is flexible, bendable and has a low signal loss.
  • The CS29 cable is perfect for use in demanding conditions.

Jacket Material : TPE
Min. Bend Radius (mm) : 13
Diameter (mm) : 5

Cable Data
Attenuation (dB /10m) @ 400MHz : 2.2
Attenuation (dB /10m) @ 1GHz : 4
Attenuation (dB /10m) @ 2GHz : 5.5
Shield efficiency. to IEC 61196-1 : <-90dB
