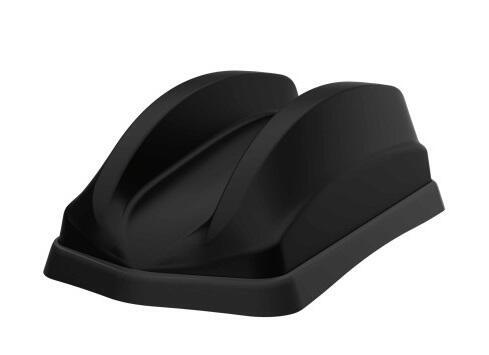

Panorama Antennas GPS2D4-6-60 Dual Sharkee 5G Antenna for Mobility Solutions, 4x Cellular, 2x GPS

Dual Sharkee 5G Antenna for Mobility Solutions, 4x Cellular, 2x GPS

Antenna with 4x4 MIMO 5G LTE (617-6000 MHz), 2 GPS, & Radio Mount

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The GPS2D4-6-60 is a 6-in-1 advanced 4G/5G, and GPS/GNSS antenna with a dual sharkfin style housing. The dual fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications, where a cost-effective, efficient and robust antenna is essential.

Configured in a robust shark fin style housing, the ultra-wideband 4x4 MIMO cellular antenna elements cover all 5G LTE spectrum frequencies worldwide (617-960/1427-6000 MHz), including LTE band 71 (617 to 698 MHz). There are two active GPS/GNSS antennas, each with a 26dB gain LNA and advanced filtering for LTE Band 13/14 operation. An integral mounting stud for an external antenna whip is provided, with a blanking cap supplied if this function is not required.

The antenna must be installed on a metal panel when a comms whip is used, otherwise, it may be fitted on a non-metallic panel while still offering similar performance. Requiring only a single hole mounting, the antenna reduces vehicle damage, installation time, and cost and visual impact. The rugged dome is built from heavy-duty plastic for extra durability. It includes a bottom gasket for reliable sealing and conductive pads for superior grounding. The GPS2D4-6-60 is IP69K certified, assuring it withstands water and dust for safe operation outdoors.

  • Omnidirectional 5G LTE multi-antenna for mobile operations
  • 4x4 MIMO LTE with 617-960 MHZ and 1710-6000 MHz range
  • Advanced filtering for LTE Band 13/14 operation and Band 71
  • 2x GPS/GNSS with advanced filtering, 1562 to 1612 MHz, and 26 dB gain LNA
  • Integrated mount supports an optional mobile radio whip antenna (7:1 with the radio whip)
  • Maximum input power: Internal elements 5 W / main whip 60 W
  • Through-hole panel mounting
  • 30cm low-loss, flame retardant cables
  • IP69K rated dome

Combination / MIMO Antennas 6:1 (4 LTE, 2 GPS) | 7:1 (4 LTE, 2 GPS, RF)
Pattern : Omnidirectional
Cellular Frequencies : 617-960 MHz and 1427-6000 MHz
VSWR : <2:1 ± 4 MHz
Gain : 5 to 9 dBi depending on frequency (LTE)
Polarization : Vertical (LTE) and right hand circular (GPS)
Impedance : 50 Ω
Power : 5 W maximum input and 60 W for whip
Interfaces -
GPS : 1562-1612 MHz, 26 dB LNA gain
Mechanical -
Cabling : 30cm RG174 cables (UN ECE R 118 compliant)
Connector Types : 4x SMA male (LTE), 2x ME male (GPS), 1x FME female (whip)
Dimensions : 253 x 142 x 82 mm (L x W x H)
Mounting : Panel mount
Antenna Connection : Whip antenna mount with M6 x 0.75 thread
Color : Black (white option is available)
Material : ASA, silicone rubber, aluminum alloy
Ratings -
Operating Temperature : -40 to 80°C
Certifications : IP69K
