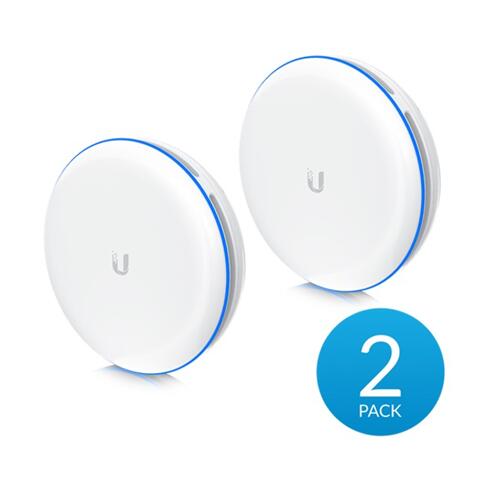

Ubiquiti UBB-XG 60GHz PtP Pre-Configured Bridge Kit, 10G SFP+, 1G PoE++

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

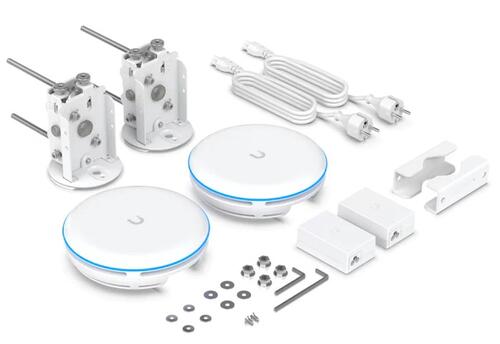

Ubiquiti UBB-XG UniFi Outdoor 60GHz WiFi Point to Point Link Kit

The Ubiquiti UBB-XG UniFi Outdoor 60GHz WiFi 5 Point-To-Point PtP Link Kit is a 60 GHz, PtP link that creates short-range, high-throughput connections while also sustaining blazing-fast speed across distances up to 500 m.

Designed for plug-and-play simplicity, the UBB XG's bridging units come pre-paired out of the box and both feature calibration LEDs that help you easily adjust their angle and position to optimise signal transmission.

Seamlessly integrated with the UniFi Network application, the UBB XG can be set up in minutes and managed from a central, intuitive interface, making network bridging easier than ever!

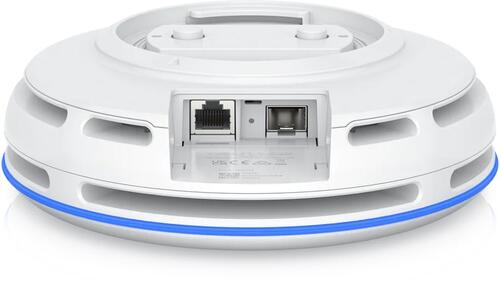

  • One (1) 1GbE RJ45 port.
  • One (1) 10Gbps SFP+ port.
  • 5 GHz radio for backup redundancy.
  • Operational range of up to 500 metres.
  • Pre-paired bridging units.
  • Calibration LEDs ensure an easy alignment process.
  • Compact design.
  • IPX6-rated, weatherproof casing.
  • Terragraph-certified.

Managed with the UniFi Network application (version 6.3 or higher).

  • Works with UniFi Network Application
  • Manage your networks from a single interface.
  • Enjoy intuitive configuration options, as well as robust device control and monitoring.
  • Upgrade device firmware remotely.
  • Easily manage network users and guests.
  • Personalise the design, architecture, and privacy of guest hotspots.

Technical Specifications

Mechanical

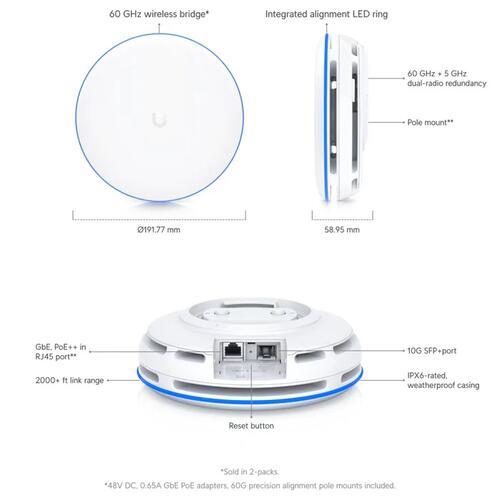

Dimensions

Ø191.8 x 59 mm (Ø7.6 x 2.3")

Weight

Without mount: 1.7 kg
With mount: 2.9 kg

Enclosure materials

Aluminium alloy, UV-resistant polycarbonate

Mount material

Stainless steel

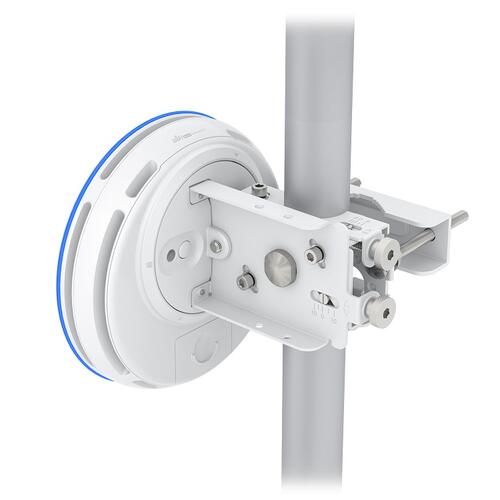

Mounting

60G precision alignment pole mount (Included)
Pole compatibility: Ø25.4-63.5 mm (Ø1-2.5")

Weatherproofing

IPX6

Hardware



Networking interface

(1) GbE RJ45 port
(1) 1/10G SFP+ port

Management interface

Ethernet
Bluetooth

Power method

PoE++
Passive PoE [4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)]

Power supply

UniFi PoE switch
48V, 0.65A Gigabit PoE adapter (included)

Supported voltage range

48V DC ± 10%

Max. power consumption

31.2W

Throughput rate
5 GHz
60 GHz


866.6 Mbps
6 Gbps

Maximum range

500+ m (1,640+ ft)

LEDs

R/G/B

Button

Factory-reset

Operating temperature

-40 to 55° C (-40 to 131° F)

Operating humidity

5 to 95% noncondensing

Certifications

FCC, IC, CE, terragraph

Software



WiFi standards

802.11ad/ay
802.11ac (WiFi 5)

Wireless security

WPA2 AES (Always On)

Operating modes

PtP

VLAN

Management VLAN only

RF



Operating frequency*

57 to 66 GHz
*Dependent on regional regulations.

Channel bandwidth

2,160/4,320 MHz (Channel Bonding Enabled)

Operating channels*

58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz
*Dependent on regional regulations.

Backup RF



Operating frequency*
Worldwide

5,150 - 5,725 MHz
*Dependent on regional regulations.

Channel bandwidth

20/40/80 MHz
