  • AP6 840E Indoor Access Point, 4x4:4 tri-radio, 2 x 2.5G LAN

SOPHOS AP84EA00ZZPCNP AP6 840E Indoor Access Point, 4x4:4 tri-radio, 2 x 2.5G LAN

AP6 840E Indoor Access Point, 4x4:4 tri-radio, 2 x 2.5G LAN

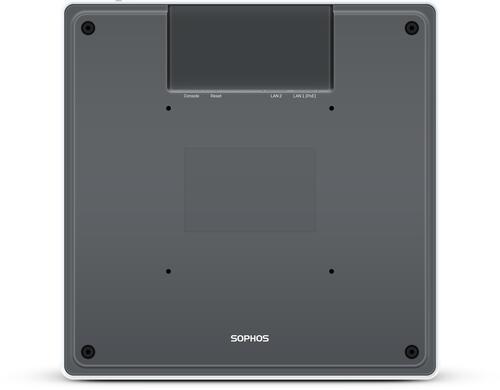

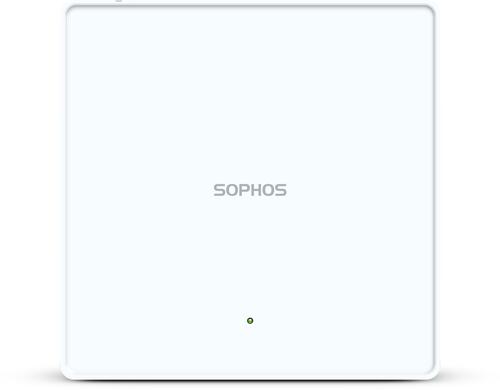

Sophos AP6 840E Indoor Access Point

  • 4x4:4 tri-radio (1 x 2.4 GHz, 1 x 5 GHz, 1 x 6 GHz)
  •  Internal antennas.
  • 2 x 2.5G LAN interface

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Sophos AP6 Series Access Points

The AP6 Series offers a range of models to suit many different environments. With four indoor models and one IP67-rated outdoor model, they are ideal for both new and existing customers to refresh their Wi-Fi infrastructure as part of a network upgrade or vendor consolidation project. Managed through Sophos Central, you have a single point of management and monitoring for all AP6 access points.

All AP6 models (except the AP6 420) have at least one 2.5G interface for faster LAN connectivity. When combined with the Sophos range of 2.5G switches, you can unlock faster speeds across your entire network. This helps to prevent performance bottlenecks and gives your wireless users an overall better Wi-Fi experience.

AP6 Model

AP6 420

AP6 420E

AP6 840

AP6 840E

AP6 420X

Indoor/Outdoor

Indoor

Indoor

Indoor

Indoor

Outdoor

WLAN Standard Bands

Wi-Fi 6

2.4 GHz, 5 GHz

Wi-Fi 6/Wi-Fi 6E

2.4 GHz, 5 GHz, 6 GHz

Wi-Fi 6

2.4 GHz, 5 GHz

Wi-Fi 6/Wi-Fi 6E

2.4 GHz, 5 GHz, 6 GHz

Wi-Fi 6

2.4 GHz, 5 GHz

Management

Sophos Central: Provides a single point of management and monitoring for all AP6 access points.

Local Management: Offers a local administrator interface available for individual access point management.

Power over Ethernet

802.3at (PoE+)

Suitable PoE+ injector or switch available for separate purchase

802.3at (PoE+)

Suitable PoE+ injector or switch available for separate purchase

802.3at (PoE+)

Suitable PoE+ injector or switch available for separate purchase

802.3bt (PoE++)

CS210-8FP switch available for separate purchase, PoE++ injector planned

802.3at (PoE+)

Suitable PoE+ injector or switch available for separate purchase

Antennas

internal omnidirectional

internal omnidirectional

internal omnidirectional

internal omnidirectional

external omnidirectional

AP6 Series Support

There are two different ways to manage the AP6 Series.

1. A local user interface via your browser to manage a single AP on site. Included in hardware purchase.
2. Sophos Central. A single cloud platform to remotely manage all of your Sophos solutions. Requires Support subscription per AP.

A Support and Services subscription per AP entitles you to Sophos Central management, firmware updates, Advanced RMA, and 24x7 multi-channel support.

Optional Accessories

We have a number of options available to cover different deployment scenarios.

Mounting Kits

Kits for flat-ceiling, plenum, and suspend mount.

Optional Antennas

120 degree sector antenna and 30 degree directional antennas available for AP6 and APX outdoor models.

POE Injectors

PoE, PoE+ and PoE++ injectors are currently available.

Power Supply

External supply available for AP6 420 and APX 120.

Sophos Switch

The ideal option to power your Sophos access points and other PoE-capable devices.
