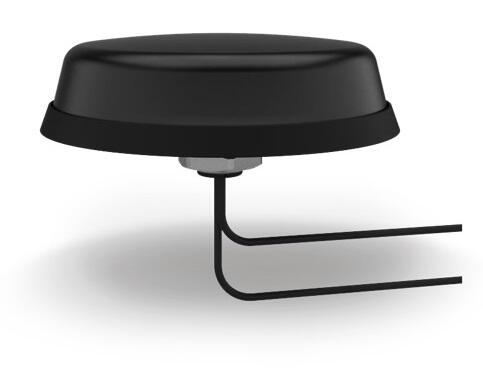

Panorama Antennas LPM2-7-27-2SP Ultra Low Profile 2x2 MiMo 4G LTE Omni Antenna, IK10, IP69K, 2x SMA

Ultra Low Profile 2x2 MiMo 4G LTE Omni Antenna, IK10, IP69K, 2x SMA

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • Low Visual Impact
  • 4x4 MiMo 4G/5G
  • Frequency 698-960/1427-27000MHz
  • 7dBi Directional Peak Gain
  • Wall or Mast Mount
  • 2x 2m cable with SMA male for connection to 4G routers

The LPM2-7-27-[X] range has been designed to promote MiMo 4G/LTE coverage in an ultra-low profile package. The compact and robust housing is weatherproof and contains two antenna elements with effective isolation and low correlation coefficient covering 698-960/1427-27000MHz frequency bands.

The antenna is designed to be panel mounted. Supplied with integrated flame retardant RG174 (compliant to UN ECE 118.03) cables and SMA plug connectors, the antenna will offer plug and play connectivity with many different routers and modems.

The antenna is supplied in black flame retardant LEXAN EXL9330 plastic as standard.

Key Users / Applications

M2M & IoT Static Applications
Remote Metering
Vending Machines
Smart Metering
EV Chargers

Electrical Data
4G LTE Elements (MiMo) 2x2
Frequency Range (MHz) 698-960/1427-2700
Typical VSWR* <2.5:1
Typical Isolation* >15dB
Pattern Omni-directional
Nominal Impedance 50Ω
Max input power (W) 5

Mechanical Data
Dimensions (mm)
Diameter 123 (4.84”)
Height 32 (1.25”)
Operating Temp (°C) -40° / +80°C (-40° / 176°F)
Material LEXAN EXL 9330 Plastic
Colour Black
Typical Weight (g) 225
Ingress Protection** IP69K
Vandal Protection IK10

Mounting Data
Fixing Panel Mount - 18mm (3/4”)

Cable Data
4G / LTE
Cable Type RG174 FR (meets UN ECE R118.03)
Diameter (mm) 2.8 (0.1”)
Length (m) 2(6.5’)
Termination 2x SMA (m)
