Alta Labs AP6 Enterprise Access Point, WiFi 6, 2x2, 2400 Mbps, Mesh

  • Elevated Design & Experience
  • Choose from free cloud management, local hardware controller or BYOD local controller license

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

. Cloud or Locally Managed
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Enterprise Access Point, WiFi 6, 2x2, Cloud Managed

The Alta Labs AP6 Access Point features a compa form factor and a sleek aesthetic design allowing seamless integration into corporate, commercial, and residential environments.

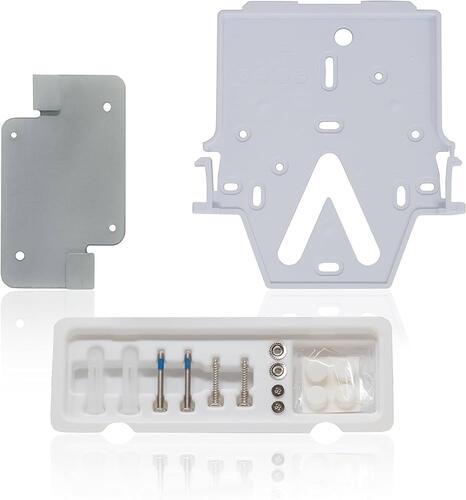

This AP is powered over Ethernet for simple, clean installation. Versatile mounting hardware is included featuring the proprietary QuickMount technology for quick, simple mounting.



• Superior Range and Performance

• Scalable Cloud-Based Management

• Mobile App

• High Performance WiFi 6

• Multi-Password Authentication

• DPI Engine

• Hotspot Functionality

• On-The-Fly Changes and Scanning

• Wireless Network Color Coding

• SSID Broadcasting Flexibility

• Customizable Dashboard

• Status Snapshots

• Device Cards



Superior Range and Performance

A proprietary antenna design provides superior range and performance. Engineered by a team with extensive WiFi design expertise, the AP6 provides seamless roaming and advanced traffic management to ensure a superior WiFi experience.



Scalable Cloud-Based Management

Alta Labs provides an intuitive and easy-to-use cloud-based management interface for Alta Labs access points and switches. Designed for optimum scalability using a high-availability architecture for the ultimate in convenience and worldwide accessibility. Built on a worldwide content delivery network to optimize response and latency, the global cloud infrastructure ensures geographically optimized connectivity through Alta Labs redundant network.

Deploy and manage multiple sites quickly and easily. Add, delete, or rename sites instantly. Toggle between sites from a site selection drop-down. Each site contains its own data set.



Mobile App

Monitor and manage your networks from the convenience of your mobile device. The management interface is easily accessible via mobile app or web browser.

Sign up for an Alta Labs account using just your name, email, and password or use Google Authentication.



High Performance WiFi 6

Built on Qualcomm's dual-band, 4-stream WiFi 6 networking platform, the AP6 delivers optimal 2.4 GHz and 5 GHz WiFi 6 performance.



Multi-Password Authentication ( AltaPass )

Use different WiFi passwords to separate network traffic and manage connectivity.

• Standard Network with less than 100 WiFi clients

• Large Optimized for hundreds to thousands of WiFi clients

• IoT Restricted to Internet and local incoming connections only

• Internet Restricted to Internet only

• Guest Restricted to Internet and IoT devices

A password can also be associated with a specific upload or download rate, a VLAN, or to bypass schedule or hotspot functionality



DPI Engine

Advanced filtering allows you to block content by application, selectable from an extensive predefined list. You can also enter domain names for domain blocking.



Hotspot Functionality

Built-in functionality to create your own local hotspot with a logo, title page, terms of service, and a final landing page. You also have the option to redirect to an external URL.



On-The-Fly Changes and Scanning

• Configuration changes do not require a reboot of your network. Changes can be made without taking your network down.

• Scan your AP environment without disrupting your WiFi network.



Wireless Network Colour Coding

Patent pending functionality that allows you to assign groups to wireless SSIDs and then assign membership to wireless access points.



SSID Broadcasting Flexibility

In addition to standard functionality such as hiding your SSID, you can continue broadcasting your SSID during a “scheduled off” event. This provides network admins with the ability to grant users additional time on the network. A user can request access via a captive portal displayed when they try to access the network.



Customizable Dashboard

Customize your dashboard with the information you want to see: IP address, Load, number of devices, MAC address, firmware version, wireless network colour assignment, and real-time status details. Details are sortable by column.



Status Snapshots

View upload and download throughput with a visual timeline on the dashboard for each AP displayed along with the number of connected devices, average processor load, channel load, and average connected devices. Select a snapshot of the last minute, last hour, last two days, or last two months.



Device Cards

Easily view connection details and configure your access points or client connections by clicking the device icon.



Specifications AP6

WIFI 6

Yes

BLUETOOTH FOR EASY ADOPTION

Yes

CONTENT FILTERING

Yes

MAX WIFI THROUGHPUT

2.4 Gbps

POWER

PoE+

4096-QAM

No

Dimensions

190mm x 125mm x 32mm

Weight

0.4 kg

Enclosure Material

Top Cover: Polycarbonate Bottom Cover: Milled Aluminium

Mount Material

Ceiling/Wall: Polycarbonate Drop Ceiling: Steel

Weatherproo?ng

N/A

HARDWARE



Network Interface

Ethernet, WiFi, Bluetooth

Management Interface

(1) GbE RJ45 Port

Button(s)

Reset/Factory Reset

LED

Blue, White

Power Method

PoE+

Power Supply

PoE+ enabled network switch 48V, 0.5A PoE adapter (optional)

Supported Voltage Range

42.5 - 57V DC

Maximum Power Consumption

20W

Maximum Transmit Power

2.4 GHz: 23 dBm @2NSS 5 GHz: 23 dBm @2NSS

MIMO

2.4 GHz: 2 x 2 5 GHz: 2 x 2

Throughput Rate

2.4 GHz: Up to 573 Mbps 5 GHz: Up to 2.4 Gbps

Antenna Gain

2.4 GHz: Up to 4.0 dBi 5 GHz: Up to 4.1 dBi

Mounting

Wall, ceiling, drop-ceiling, table top

Operating Temperature

-30 to 60° C (-22 to 140° F)

Operating Humidity

5 to 95% Noncondensing

Certi?cations

CE, FCC, IC

WiFi Standards

801.11a/b/g/n/ac/ax WiFi4/WiFi5/WiFi6

Roaming

802.11r/k/v

Wireless Security

WPA-PSK, WPA-Enterprise (WPA2/WPA3)

Multi-BSSID

Supported

VLAN

802.1Q

Advanced QoS

802.11e

Guest Traf?c Isolation

Supported

Concurrent Clients

300+

Zero Wait DFS

Yes

Intelligent WiFi Scheduling

Yes

Painless Hotspot Setup

Yes

Scale From Home to SMB to Stadium

Yes

Seamless Per-Client Settings

VLAN, Device Type, Rate Limit, Hotspot/Schedule Exception

SUPPORTED DATA RATES



802.11a/g

6 Mbps to 54 Mbps

802.11b

1 Mbps to 11 Mbps

802.11n

6.5 Mbps to 300 Mbps (Up to MCS 15)





802.11ac

6.5 Mbps to 1.9 Gbps (Up to MCS 9)

802.11ax

2.4 GHz: Up to 573 Mbps 5 GHz: 6.5 Mbps to 2.4 Gbps (Up to MCS 11)
