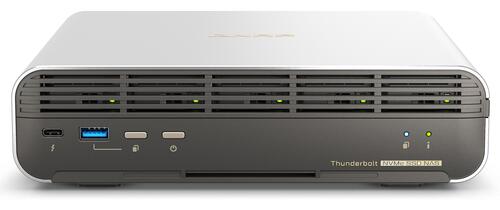

QNAP TBS-H574TX-I3-12G 5-bay All-Flash NASbook for up to 5x E1.S or M.2 PCIe NVMe SSDs

Flexibly install five E1.S or M.2 PCIe NVMe SSDs for lightning-fast multimedia file editing.

Designed for film sets, small studios, small-scale video production teams and SOHO users, the compact TBS-h574TX Thunderbolt™ 4 all-flash NASbook elevates video production for optimum productivity. It packs high-speed I/O and Intel® Core™ performance required by video production, allowing creators using Mac® or Windows® to enjoy the smoothest experience ever in real-time video editing, large file transfer, video transcoding, and backup. The TBS-h574TX, as the bridge between pre-production and post-production, takes video projects and team collaboration to the next level. The TBS-h574TX runs the ZFS-based QuTS hero operating system that ensures data integrity. You can also switch to QTS operating system based on your needs.

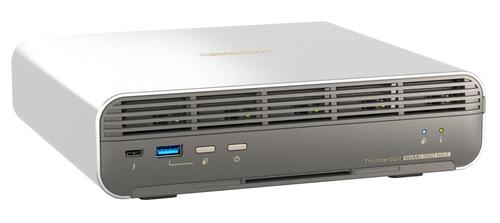

Compact, aesthetic, yet unmatched performance
The TBS-h574TX provides content creators the perfect combination of stylish design and performance. With its metal-finish case, it delivers optimized cooling performance. The set-top design makes the TBS-h574TX space-saving – smaller than A4 paper and with only 2.54 liters in volume – ideal for small-scale studios or video production teams looking for a portable solution.

Ultra-fast RAW file editing
With an E1.S to M.2 SSD adapter attached in each slot, you can flexibly install five E1.S or M.2 PCIe NVMe SSDs for lightning-fast multimedia file editing.

Stay agile for ongoing projects
Hot-swappable M.2 SSD and automatic RAID disk replacement enhance system reliability, reduce the risk of data loss, and smoothen ongoing projects.

Thunderbolt™ 4 for faster direct connections
Two Thunderbolt™ 4 ports allow directly connecting Mac®/PC workstations to the TBS-h574TX, delivering up to 20Gbps for 4K video editing.

Hybrid-architecture CPU for multitasking
The 13th Gen Intel® Core™ processors with hybrid-architecture (P-core and E-core) delivers high performance and efficiency.

2.5GbE and 10GbE as standard
2.5GbE and 10GbE networks accelerate large file transfer and allow for more connected devices/workstations by attaching a network switch.

Faster USB transfer
Two USB 3.2 Gen 2 (10Gbps) ports enable fast file import/export from/to external storage devices.

All-flash NASbook supporting E1.S/M.2 NVMe SSDs – a perfect companion for video production
Compared to large rackmount all-flash array storage, the TBS-h574TX all-flash NASbook features a compact, portable design with five SSD slots yet delivers extreme performance. It is the ideal choice to accelerate ongoing creative video projects from pre-production to post-production, and seamlessly works with USB DAS (TR-004) for file backup/archiving. The TBS-h574TX is always ready for your next project! An E1.S to M.2 SSD adapter is attached to each drive bay of the TBS-h574TX, providing great flexibility to choose between M.2 SSDs and E1.S SSDs on demand.

M.2 NVMe SSD
Supports M.2 2280 modules
Smaller capacity but more available on the market
More affordable and more vendor options; suited for diverse applications
Faster than SATA SSDs
HS-M2SSD-07 or TPAD-M2SSD-04 thermal kit (optional purchase) is recommended for maximizing the M.2 PCIe NVMe SSD cooling efficiency for stable data transfer

EDSFF E1.S SSD
Supports heights of 5.9mm / 9.5mm / 15mm
Larger capacity but less common on the market
Suited for high-intensity data transfer and is more future-proof
Compared to M.2 SSDs, E1.S SSDs are hot-swappable and have higher heat dissipation efficiency
Advanced power-loss protection (PLP) that prevents data loss
HS-M2SSD-07 heatsink (optional purchase) is recommended for maximizing the cooling efficiency of 5.9mm E1.S SSD to ensure stable data transfer

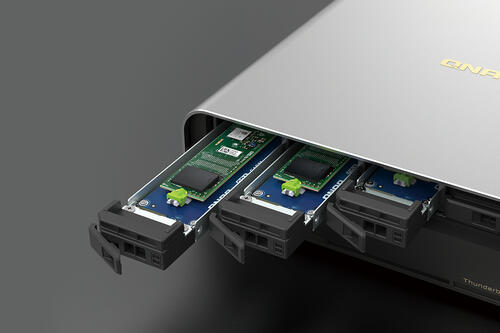

Enabling hot-swappable M.2 SSDs!
As a frontline video production team, there is the risk of project interruptions due to unexpected SSD failures in storage devices. The innovative TBS-h574TX makes M.2 SSDs become hot-swappable for easier drive replacement. Along with supporting automatic RAID replacement with spares (supported from QTS 5.1 / QuTS hero h5.1), if potential drive errors are detected, the system automatically moves data from the affected drive in a RAID group to a spare, before the data on the affected drive is completely corrupted. This reduces system downtime and data loss risks as it avoids RAID rebuilding.

High-performance SSDs. Effective heat dissipation.
Designed with an excellent cooling system, the TBS-h574TX is equipped with dual fans and supports SSD heatsinks (heatsinks sold separately) to effectively enhance heat dissipation during intensive workloads, allowing creators to confidently enjoy the ultimate performance of SSD.

M.2 / E1.S SSD may overheat and suffer decreased performance during high-speed operations. It is recommended to purchase and install heatsinks on SSD controllers to enhance heat dissipation for stable high-speed transfer performance.

Thunderbolt™ 4 direct connection to workstations for higher productivity
The TBS-h574TX has two Thunderbolt™ 4 ports for high-speed data transfer (up to 20Gbps bandwidth). Mac® (including M1 and M2 chip models) or Windows® workstations can directly connect to the TBS-h574TX for fast and smooth real-time video editing, allowing for the transfer of a 1TB 4K video just in 11 minutes.

Notes:
• QNAP Thunderbolt NAS adopts Thunderbolt Networking for peer-to-peer connection, up to 20Gbps.
• Mac® system requirement: macOS 13.5 (or later)
• Connect the TBS-h574TX to your Mac® or Windows® PC with Thunderbolt™ 4 / Thunderbolt™ 3 cables and your connected devices with the Thunderbolt icon

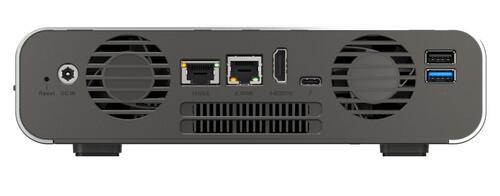

2.5GbE and 10GbE ports | Productive teamwork
The 2.5GbE and 10GbE ports can be used with a network switch to add more connected devices to the TBS-h574TX for collaboration, significantly reducing file transfer times across devices.

USB 3.2 Gen 2 ports | Faster file import/export
Creators and editors can easily import materials from external storage devices to the TBS-h574TX via two USB 3.2 Gen 2 (10Gbps) ports and one USB 2.0 port during pre-/post-production.

USB ports | Easier storage expansion
The TBS-h574TX capacity is scalable by connecting QNAP USB DAS TR-004 or USB JBOD TL-D800C to archive massive number of video files for ever-growing storage and backup needs.
