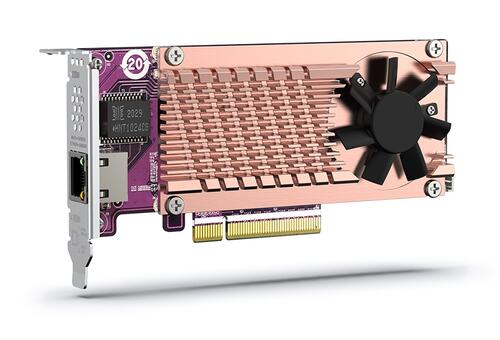

QNAP QM2-2P10G1TB QM2 series, 2x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 8, 1x 10GbE Port

QM2 series, 2x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 8, 1x 10GbE Port

For PC/Server and NAS

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

2 x PCIe Gen3 NVMe SSD & 1 x 10GbE port expansion card to enhance performance

The QM2-2P10G1TB allows you to easily add two M.2 NVMe SSDs and 10GbE RJ45 connectivity to your QNAP NAS. Compared with the SATA interface, the QM2-2P10G1TB's PCIe Gen3 x 8 interface provides higher bandwidth to deliver faster computing speed and data access.

For PC/Server and NAS
The QM2-2P10G1TB allows you to easily add two M.2 NVMe SSDs and 10GbE RJ45 connectivity to your PC/workstation. Compared with the SATA interface, the QM2-2P10G1TB's PCIe Gen3 x 8 interface provides higher bandwidth to deliver faster computing speed and data access.

Tackle performance bottlenecks
The QM2-2P10G1TB boosts NAS performance by adding M.2 PCIe Gen3 NVMe SSDs. It doesn’t occupy any 3.5-inch drive bays, allowing you to maximize both your storage capacity and performance.

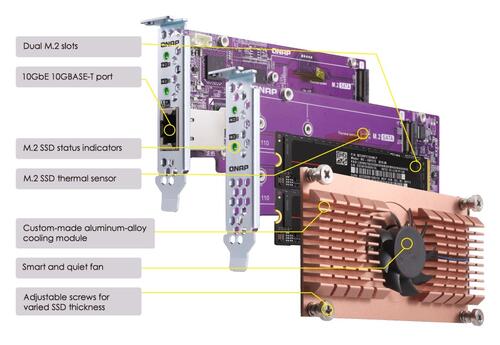

  • M.2 SSDs* can be installed (no tools required) to form caching pools or an auto-tiering volume.
  • Enables SSD caching to boost performance and optimizes storage efficiency with Qtier Technology**.
  • Provides 10GBASE-T connectivity and backwards compatibility with 5GbE/2.5GbE/1GbE/100MbE.
  • M.2 SSD thermal sensors allow real-time M.2 SSD temperature monitoring.
  • A quiet cooling module (heatsink and smart fan) minimizes overheating risks and sustains constant high performance.
  • LED indicators for monitoring M.2 SSD status.

* M.2 SSDs are not included as standard
**Check models that support Qtier on www.qnap.com

Future-proof 10GbE network environments
The QM2-2P10G1TB features a 10GBASE-T Multi-Gigabit (10G/5G/2.5G/1G/100M) network port to empower your QNAP NAS with 10GbE high-speed connectivity for bandwidth-demanding tasks. With QNAP's various 10GbE switches, you can easily upgrade to a high-speed network environment.
