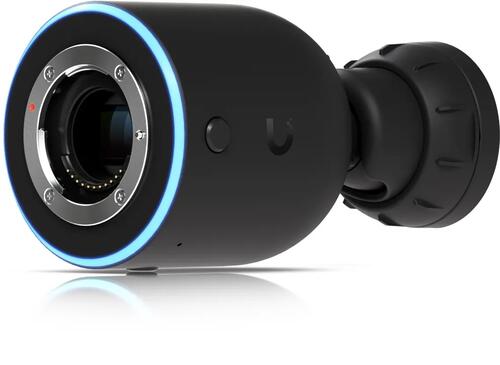

Ubiquiti UVC-AI-DSLR-LD UniFi Protect Camera AI DSLR 4K (8MP) video resolution, long range
UniFi Protect Camera AI DSLR 4K (8MP) video resolution with 45mm M. Zuiko Digital ED PRO Lens
- 4K (8MP) video resolution
- High-sensitivity imaging sensor
- Wide aperture M4/3 f/1.2 prime lens included
- Advanced AI: Detect people, read license plates, and more
- Integrated 2-way audio
- Connect and power using PoE+
- Weatherproof (outdoor exposed)
- IPX5 (With the outdoor case)
|
Dimensions |
Without mount: Ø80 x 89 mm, With mount: Ø80 x 153 mm, M. Zuiko Digital ED 45 mm PRO: Ø70 x 84.9 mm, Outdoor case: Ø91.6 x 196.3 mm |
|
Weight |
Without mount: 660 g, With mount: 820 g, M. Zuiko Digital ED 45 mm PRO: 410 g, Outdoor case: 510 g |
|
Enclosure Material |
Aluminium alloy |
|
Mount Material |
Wall mount: aluminium alloy, Pole mount: aluminium alloy |
|
Weatherproofing |
IPX5 (With the outdoor case) |
|
Sensor |
4/3" 10MP CMOS |
|
Lens |
UVC-AI-DSLR-LD: M. Zuiko Digital ED 45 mm ƒ/1.2 PRO |
|
View angle |
Telephoto: H: 21.6°, V: 16.2°, D: 27° |
|
Video compression |
H.264 |
|
Resolution |
UVC-AI-DSLR/UVC-AI-DSLR-LD: 8MP 3840 x 2160 (16:9) |
|
Max Frame Rate |
30 FPS |
|
Processor |
Quad-core Arm® Cortex®-A53 based chip |
|
Networking interface |
GbE RJ45 port |
|
Max Power Consumption |
17.77W (With lens working) |
|
Power method |
PoE+ |
|
Supported Voltage Range |
37—57V DC |
|
Buttons |
Factory reset, Lens release key |
|
Mounting |
Wall, pole mount (Included), Tripod mount (Optional) |
|
Ambient Operating Temperature |
-20 to 40° C |
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
Microphone |
Yes (Audio function will be disabled when using its outdoor case) |
|
Speaker |
Yes (Audio function will be disabled when using its outdoor case) |
|
