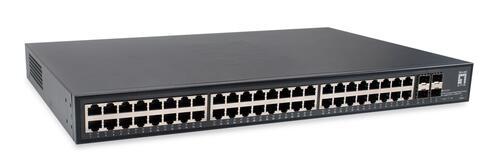

LevelOne GTU-5211 52-Port Gigabit Ethernet Switch, 48x 1GbE RJ45, 4x 10GbE SFP+

52-Port Gigabit Ethernet Switch, 48x 1GbE RJ45, 4x 10GbE SFP+

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • 48 Gigabit Ethernet ports and 4 10-Gigabit SFP+ slots
  • Supports 32K MAC address auto-learning and auto-aging
  • 10K jumbo frames to increase data transfer rates
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

10 Gigabit Ethernet Speeds: Take Your Data to the Next Level

The GTU-5211 is a 52-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 10 Gigabit Ethernet.

Bandwidth hungry? Not a problem.

What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GTU-5211 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.

Plug and Play, Flexible and Easy

The GTU-5211 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.

Dimensions (W x D x H) 440 x 290 x 44.5 mm
Product weight (kg) 3.389

Acoustic noise (dB) 30 dB
Backplane (Gbps) 176
Flash memory size 16 MB
Heat dissipation 163.8 (Btu/H)
Indicators Power, Link/Ack
Jumbo frame (KB) 10 KB
MAC address table 32 K
Mount 19" rack mount, Desk mount
MTBF 43,800 hrs
Packet buffer 16 Mbits
Port Configuration 52
Power consumption 48 W
Power supply 100-240 VAC, 50-60 Hz
RAM size 256 MB
Standards
? IEEE 802.3 10-BASE-T (Ethernet)
? IEEE 802.3u 100-BASE-TX (Fast Ethernet)
? IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
? IEEE 802.3z 1000BASE-X (Gigabit Ethernet)
? IEEE 802.3x Flow Control (full-duplex flow control)
? IEEE 802.3az: Energy Efficient Ethernet
