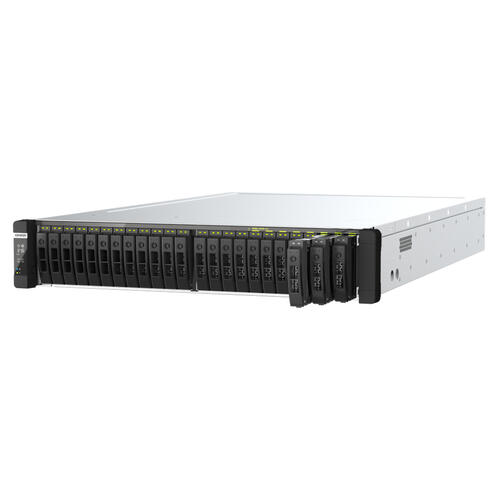

QNAP TDS-H2489FU-4314-128G 24-Bay all-flash U.2 NVMe PCIe Gen4 dual-processor NAS, 128GB RAM
- Dual-processor (2 x 8 Cores & 2 x 16 Cores) NVMe all-flash ZFS storage built for latency-sensitive file servers, virtualized workloads, and 4K/8K streams
- Supports QuTS hero or QTS operating system
- 24-Bay all-flash U.2 NVMe PCIe Gen4 dual-processor NAS, 2 x Intel® Xeon® Silver 4314 16C/32T processor (up to 3.4 GHz), 128GB RDIMM ECC DDR4 RAM, 4 x 2.5GbE LAN, 2 x 25GbE SFP28, iSCSI, RAID, PCIe Gen4 expansion slots, 1200W redundant power supply, without Rail Kit (RAIL-E03)
Build high-performance storage infrastructure for IOPS-demanding applications
Virtualisation
Eliminates storage bottlenecks for unstructured data and I/O intensive workloads; ideal for server virtualization and virtual desktop infrastructure (VDI).
Data Centers
Delivers ultra-low latency and high IOPS performance, providing response times within microseconds for data centers that host significant business-critical systems and data.
Media and Entertainment (M&E) production
Satisfies smooth 4K/8K media streaming and post-production, empowering multimedia workflows with faster data transfer, access, and backup for boosted efficiency.
Multiplied computing power with dual Intel® Xeon® Scalable processors and 8-channel DDR4 ECC memory
The TDS-h2489FU is powered by dual Intel® Xeon® Silver 4309Y 8-cores 2.8 GHz (up to 3.6 GHz) or Intel® Xeon® Silver 4314 16-cores 2.4 GHz (up to 3.4 GHz) processors, which are based on the new 3rd Gen Intel® Xeon® Scalable processors architecture that increases core performance, memory, I/O bandwidth, and features built-in workload and service acceleration. With 8-channel modules and 32 Long-DIMM slots, the TDS-h2489FU’s DDR4 memory can be upgraded up to 1 TB for fulfilling memory-intensive applications. Demonstrating immense computing power and multi-tasking capabilities, the TDS-h2489FU is outstanding for uncompromising performance demands in HPC, virtualization, file servers, and multimedia applications.
U.2 NVMe PCIe Gen 4 x4 – faster speed, optimal I/O, and lower latency
The 2U rackmount TDS-h2489FU has 24 drive bays for U.2 NVMe PCIe Gen 4 x4 SSDs that supply up to 64 Gb/s bandwidth (compatible with PCIe Gen 3 SSDs) for the utmost application response times. Coupled with powerful ZFS data deduction and SSD optimization technologies, the TDS-h2489FU provides solid foundations for overcoming performance demands while also maximizing your SSD investments! Among the 24 drive bays, slots 17 to 24 support both high-performance U.2 NVMe PCIe Gen 4 x4 SSDs or economical SATA 6Gb/s SSDs.
|
|
|
|---|---|
|
CPU |
2 x Intel® Xeon® Silver 4314 16-core/32-thread processor, up to 3.4 GHz |
|
CPU Architecture |
64-bit x86 |
|
Encryption Engine |
(AES-NI) |
|
System Memory |
128 GB RDIMM DDR4 ECC (8 x 16 GB) |
|
Maximum Memory |
1 TB (32 x 32 GB) |
|
Memory Slot |
32 x RDIMM DDR4 ECC (16 x slots per socket) |
|
Flash Memory |
5GB (Dual boot OS protection) |
|
Drive Bay |
24 (16 x 2.5-inch U.2 PCIe NVMe + 8 x 2.5-inch U.2 PCIe NVMe/SATA 6Gbps) The system is shipped without SSD. |
|
Drive Compatibility |
2.5-inch bays: |
|
Hot-swappable |
|
|
M.2 Slot |
2 Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility. |
|
SSD Cache Acceleration Support |
|
|
SR-IOV |
|
|
2.5 Gigabit Ethernet Port (2.5G/1G/100M) |
4 (2.5G/1G/100M/10M) |
|
25 Gigabit Ethernet Port |
2 x 25GbE SFP28 SmartNIC port |
|
Wake on LAN (WOL) |
Only the 2.5GbE port |
|
Jumbo Frame |
|
|
PCIe Slot |
2 *Slot 2 is preinstalled with a 25GbE network adapter. |
|
USB 3.2 Gen 1 port |
4 |
|
Form Factor |
Rackmount |
|
LED Indicators |
SSD, Status, Power, Fan, Temperaure, Power Module Status, Device Name, IP Address |
|
Buttons |
Power, Reset, OLED |
|
Dimensions (HxWxD) |
88.3 × 446.2 × 713.2 mm |
|
Weight (Net) |
22.77 kg |
|
Weight (Gross) |
27.55 kg |
|
Operating Temperature |
0 - 35°C (32°F - 95°F) |
|
Storage Temperature |
-20 - 70°C (-4°F - 158°F) |
|
Relative Humidity |
5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
|
Power Supply Unit |
1200W PSU(x2), 100-240Vac |
|
Power Consumption: Operating Mode, Typical |
467.59 W Tested with drives fully populated. |
|
Fan |
6 x 60mm, 12VDC |
|
System Warning |
Buzzer |
|
Standard Warranty |
5 |
|
Max. Number of Concurrent Connections (CIFS) - with Max. Memory |
10,000 |
|
|
|
|---|---|
|
