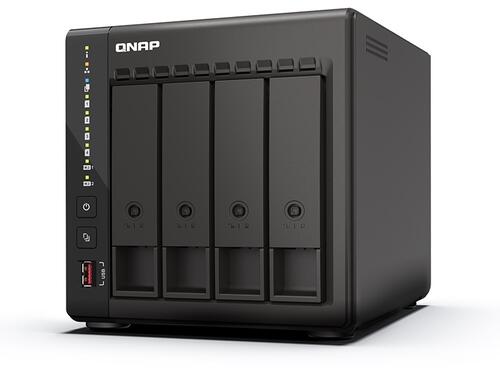

QNAP QVP-41C 4-bay high-performance NVR

  • Build a complete surveillance solution with affordable deployment
  • Live surveillance monitoring, remote management, and smart AI

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The QVP-41C QVR Pro appliance is a tower-based network surveillance server with an Intel® Celeron® quad-core processor that supports eight free IP camera channels and up to twenty-four IP camera channels. Offering an economic and high-performance software and hardware integrated video surveillance solution, the QVP-41C fulfills requirements for secure, reliable, and centrally-managed video surveillance storage for small businesses and offices.

Smoother surveillance streaming with 2.5GbE connectivity
Connect the two built-in 2.5GbE ports to a QNAP 2.5GbE switch to benefit from a smoother surveillance streaming experience.

Easy remote monitoring with the QVR Pro Client mobile app
The QVR Pro Client mobile app allows you to remotely monitor multiple channels simultaneously. If your network connection is slow or metered/capped, you can choose the low-bandwidth mode to view a bandwidth-optimized stream without affecting the quality of recordings. In addition, you can remotely set the camera’s preset point or control the PTZ cameras within the app.

Supports ONVIF cameras
Compatible with thousands of cameras from over 200+ brands and ONVIF standards.

Long-term model
The QVP-41C will be available and supported by QNAP for an extended period, up to 2029.

Dual HDMI™ outputs
Play and switch between multi-channel real-time 4K videos on two monitors with extended display.

High-performance NVR
Boost your surveillance data transmission efficiency with dual-port 2.5GbE, a USB 3.2 Gen2 10Gbps port, and 8GB RAM.

RAID protection
Unlike traditional DVR and NVR, the QVP-41C protects your data from drive failure with RAID.

Lightweight AI surveillance applications
QVP-41C incorporates QNAP smart surveillance applications and supports Intel® OpenVINO™ AI engine and Edge TPU expansion via M.2 SSD slots to boost facial recognition performance in QVR Face.

QVP-41C vs. other NAS-based surveillance systems. What’s the difference?
In a conventional NAS-based surveillance system, surveillance is just one of many applications available to users. As all these applications need to share NAS system resources and storage space, surveillance performance could be impacted. The QVP-41C QVR Pro Appliance overcomes this by providing dedicated storage space and reserving full system resources for surveillance, delivering the utmost performance to fulfil professional surveillance system requirements. The QVP-41C also comes with built-in camera channel licenses and essential applications to enable local installation without requiring an internet connection. Simply install the hard drives and power up the QVP-41C to start the installation process.

High-capacity video surveillance storage solution
QVP-41C is a professional network surveillance server, compatible with 8,000+ IP cameras of 200+ brands and thousands of ONVIF network cameras.





OS

QVR Pro OS (QVP)

CPU

Intel® Celeron® J6412 4-core/4-thread processor, burst up to 2.6 GHz

CPU Architecture

64-bit x86

Graphic Processors

Intel® UHD Graphics

Hardware-accelerated Transcoding



System Memory

8GB

Maximum Memory

16 GB ( 2 x 8 GB)

Memory Slot

2 x SO-DIMM DDR4

Flash Memory

4GB (Dual boot OS protection)

Max Live Cameras (Local Display)

24ch @ All 720p,H.264, 30FPS
12ch @ All 1080p,H.264, 30FPS

Max Playback Cameras (Local Display)

12

Max Concurrent Connection (Client)

8 (4 live cameras / per remote client)
*The number of client concurrent connection varies by live cameras

Embedded Channel

8

Max Channel

24

H264 / 1920x1080 / 30FPS

Max Throughput

300 Mbps

Drive Bay

4 x 3.5-inch SATA 6Gb/s, 3Gb/s

The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/

Drive Compatibility

3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Hot-swappable



M.2 SSD Slot

2 x M.2 2280 PCIe Gen 3 x2

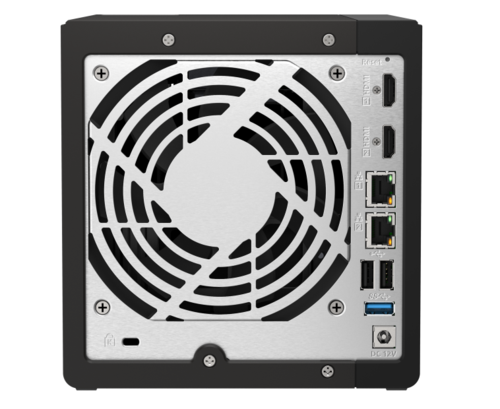

2.5 Gigabit Ethernet Port

2

USB 2.0 port

2

USB 3.2 Gen 2 (10Gbps) Port

2

HDMI™ Output

2, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz)

Form Factor

Tower

LED Indicators

HDD 1-4, Status, LAN, USB port, M.2 port

Buttons

Power, Reset, USB Auto Copy

Dimensions (HxWxD)

168.5 × 160.2 × 220.5 mm

Weight (Net)

2.21 kg

Weight (Gross)

3.61 kg

Operating temperature

0 - 40 °C (32°F - 104°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27°C (80.6°F)

Power Supply Unit

90W adapter, 100-240V

Power Consumption: HDD Sleep Mode

28.974 W

Power Consumption: Operating Mode, Typical

35.79 W

Fan

1 x 120mm, 12VDC

Sound Level

16.9 db(A)

System Warning

Buzzer

Tray Locker

Yes

File System: Internal Hard Drive

EXT4

RAID Recovery



Online RAID Capacity Expansion

Yes

Online RAID Level Migration

Yes

RAID 10+ hot spare

Yes

RAID 10

Yes

RAID 6

Yes

RAID 5+ Spare

Yes

RAID 5

Yes

RAID 1

Yes

RAID 0

Yes

JBOD

Yes

Single Disk

Yes

Wake on LAN (WOL)

Yes

Schedule Power On/Off (15 settings)

Yes

Telnet & SSH logins (Admin only)

Yes

Syslog Server & Client

Yes







OS

QVR Pro OS (QVP)

CPU

Intel® Celeron® J6412 4-core/4-thread processor, burst up to 2.6 GHz

CPU Architecture

64-bit x86

Graphic Processors

Intel® UHD Graphics

Hardware-accelerated Transcoding



System Memory

8GB

Maximum Memory

16 GB ( 2 x 8 GB)

Memory Slot

2 x SO-DIMM DDR4

Flash Memory

4GB (Dual boot OS protection)

Max Live Cameras (Local Display)

24ch @ All 720p,H.264, 30FPS
12ch @ All 1080p,H.264, 30FPS

Max Playback Cameras (Local Display)

12

Max Concurrent Connection (Client)

8 (4 live cameras / per remote client)
*The number of client concurrent connection varies by live cameras

Embedded Channel

8

Max Channel

24

H264 / 1920x1080 / 30FPS

Max Throughput

300 Mbps

Drive Bay

4 x 3.5-inch SATA 6Gb/s, 3Gb/s

The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/

Drive Compatibility

3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Hot-swappable



M.2 SSD Slot

2 x M.2 2280 PCIe Gen 3 x2

2.5 Gigabit Ethernet Port

2

USB 2.0 port

2

USB 3.2 Gen 2 (10Gbps) Port

2

HDMI™ Output

2, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz)

Form Factor

Tower

LED Indicators

HDD 1-4, Status, LAN, USB port, M.2 port

Buttons

Power, Reset, USB Auto Copy

Dimensions (HxWxD)

168.5 × 160.2 × 220.5 mm

Weight (Net)

2.21 kg

Weight (Gross)

3.61 kg

Operating temperature

0 - 40 °C (32°F - 104°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

90W adapter, 100-240V

Power Consumption: HDD Sleep Mode

28.974 W

Power Consumption: Operating Mode, Typical

35.79 W

Fan

1 x 120mm, 12VDC

Sound Level

16.9 db(A)

System Warning

Buzzer

Tray Locker

Yes

File System: Internal Hard Drive

EXT4

RAID Recovery



Online RAID Capacity Expansion

Yes

Online RAID Level Migration

Yes

RAID 10+ hot spare

Yes

RAID 10

Yes

RAID 6

Yes

RAID 5+ Spare

Yes

RAID 5

Yes

RAID 1

Yes

RAID 0

Yes

JBOD

Yes

Single Disk

Yes

Wake on LAN (WOL)

Yes

Schedule Power On/Off (15 settings)

Yes

Telnet & SSH logins (Admin only)

Yes

Syslog Server & Client

Yes
