  • 26-Port L3 Managed Gigabit Switch, 2 x SFP/RJ45 Combo Ports

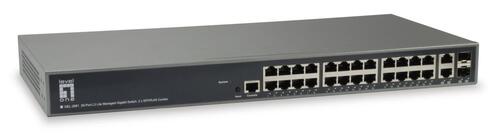

LevelOne GEL-2681 26-Port L3 Managed Gigabit Switch, 2 x SFP/RJ45 Combo Ports

26-Port L3 Managed Gigabit Switch, 2 x SFP/RJ45 Combo Ports

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • 24 Gigabit ports and 2 Gigabit RJ45/SFP combo ports
  • QoS control for traffic prioritization and bandwidth management
  • DHCP Client/Server
  • Supports IPv4/IPv6 network operation
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • IEEE 802.3ad LACP for auto port aggregation
  • Supports VLAN (Port-based, Protocol-based, Private, Q-in-Q, Tag-based) and GVRP
  • IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
  • IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
  • Built-in Device Management System (DMS) provides management, diagnostics and monitoring to connected network components and devices

GEL-2681 L3 Managed Gigabit Switch is a next-generation Ethernet Switch offering full suite of features, including advanced L3 features such as Static Route that delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.

The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.

Port Configuration




Console RJ45

1

Gigabit RJ45/SFP combo

2

Gigabit RJ45

24

Gigabit SFP

2

Product Features




Features

? Device Management System (DMS)
? IGMP v1/v2/v3 snooping, IGMP Queried, IGMP Proxy
? Port-based VLAN
? 802.1Q tag-based VLAN
? MAC-based VLAN
? Management VLAN
? Private VLAN Edge (PVE)
? Q-in-Q (double tag) VLAN
? Voice VLAN
? GARP VLAN Registration Protocol (GVRP)
? DHCP Client
? IPv4/IPv6 L3 static routeDevice

Miscellaneous




Data rate

Gigabit Ethernet

PoE Supported

No

Concurrent ports

Total 26.00

Fanless

No

Manageable

Yes

Series

TURING series

Grade

Commercial

Non-disclosure




Embedded system

ECOS

Others




Approval and Compliance

? CE
? LVD
? FCC Part 15 Class A
? VCCI
? RoHS

Operating humidity

10% RH ~ 90% RH

Operating temperature

0°C ~ 45°C

Storage humidity

10% RH ~ 90% RH

Storage temperature

-20°C ~ 70°C

Package Contents

? GEL-2681
? Power Cord
? Console Cable
? 19" Rack Mount Kit
? Quick Installation Guide
? Resource CD (User Manual, QIG)

Frontend Performance




Switching capacity

52 Gbps

Physical Specifications




Dimensions (W x D x H)

442 x 211 x 44 mm

Product weight (kg)

2.6

System specifications




Backplane (Gbps)

52

Flash memory size

128 MB

Heat dissipation

full loading: 73.87 BTU/hr

Indicators

System, Link/Act/Speed

Jumbo frame (KB)

9

MAC address table

8K

Mount

19" rack mount

Power supply

AC power

Power supply included

Yes

RAM size

512 MB

Standards

? IEEE 802.3 10-BASE-T, Ethernet
? IEEE 802.3u 100-BASE-TX, Fast Ethernet
? IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
? IEEE 802.3z 1000BASE-X,Gigabit Ethernet
? IEEE 802.1p Quality of Service (QoS)
? IEEE 802.1X Port-based Network Access Control (PNAC)
? IEEE 802.1Q Virtual LANs (VLANs)
? IEEE 802.1D MAC Bridges
? IEEE 802.1d Standard Spanning Tree Protocol
? IEEE 802.1s Multiple Spanning Tree (MSTP)
? IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
? IEEE 802.3x Flow Control
? IEEE 802.3ad Link Aggregation Control Protocol (LACP)
? IEEE 802.3az Energy-Efficient Ethernet

Port Configuration




Console RJ45

1

Gigabit RJ45/SFP combo

2

Gigabit RJ45

24

Gigabit SFP

2

Product Features




Features

● Device Management System (DMS)
● IGMP v1/v2/v3 snooping, IGMP Queried, IGMP Proxy
● Port-based VLAN
● 802.1Q tag-based VLAN
● MAC-based VLAN
● Management VLAN
● Private VLAN Edge (PVE)
● Q-in-Q (double tag) VLAN
● Voice VLAN
● GARP VLAN Registration Protocol (GVRP)
● DHCP Client
● IPv4/IPv6 L3 static routeDevice

Miscellaneous




Data rate

Gigabit Ethernet

PoE Supported

No

Concurrent ports

Total 26.00

Fanless

No

Manageable

Yes

Series

TURING series

Grade

Commercial

Non-disclosure




Embedded system

ECOS

Others




Approval and Compliance

● CE
● LVD
● FCC Part 15 Class A
● VCCI
● RoHS

Operating humidity

10% RH ~ 90% RH

Operating temperature

0°C ~ 45°C

Storage humidity

10% RH ~ 90% RH

Storage temperature

-20°C ~ 70°C

Package Contents

● GEL-2681
● Power Cord
● Console Cable
● 19" Rack Mount Kit
● Quick Installation Guide
● Resource CD (User Manual, QIG)

Frontend Performance




Switching capacity

52 Gbps

Physical Specifications




Dimensions (W x D x H)

442 x 211 x 44 mm

Product weight (kg)

2.6

System specifications




Backplane (Gbps)

52

Flash memory size

128 MB

Heat dissipation

full loading: 73.87 BTU/hr

Indicators

System, Link/Act/Speed

Jumbo frame (KB)

9

MAC address table

8K

Mount

19" rack mount

Power supply

AC power

Power supply included

Yes

RAM size

512 MB

Standards

● IEEE 802.3 10-BASE-T, Ethernet
● IEEE 802.3u 100-BASE-TX, Fast Ethernet
● IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
● IEEE 802.3z 1000BASE-X,Gigabit Ethernet
● IEEE 802.1p Quality of Service (QoS)
● IEEE 802.1X Port-based Network Access Control (PNAC)
● IEEE 802.1Q Virtual LANs (VLANs)
● IEEE 802.1D MAC Bridges
● IEEE 802.1d Standard Spanning Tree Protocol
● IEEE 802.1s Multiple Spanning Tree (MSTP)
● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
● IEEE 802.3x Flow Control
● IEEE 802.3ad Link Aggregation Control Protocol (LACP)
● IEEE 802.3az Energy-Efficient Ethernet
