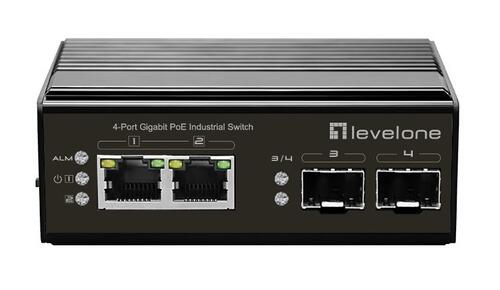

LevelOne IGP-0432 4-Port Gigabit PoE Industrial Switch, DIN-Rail, -40°C to 75°C, 2x RJ45
- 2 port 10/100/1000 Mbps RJ45 and 2 port Gigabit SFP
- PoE Output: Up to 30W per port, total PoE budget 60W
- 10/100/1000 Mbps wire speed transmission and reception
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- 6KV surge protection level on each port
- -40°C to 75°C operating temperature range
- Supports PoE auto-check function, designed to solve the problems of crashed PoE equipment.
- ESD and surge protection
- Supports DIN-rail installation
The LevelOne IGP-0432 Industrial Ethernet Switch provides two 10/100/1000Mbps PoE ports plus two Gigabit SFP ports, to enable high speed network in mission-critical environments.
With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity.
Moreover, the SFP slots support pluggable modules that enable you to choose from a variety of SFP transceivers. This switch is Power Sourcing Equipment (PSE) and is fully compliant with IEEE 802.3at/af PoE standards at maximum 30W power budget per port.
The PoE auto-check function, designed to solve the problems of crashed PoE equipment, can automatically detect frozen PD equipment and restart the port's PoE output and restart the PD device.
|
Data rate |
Gigabit Ethernet |
|
PoE Power Budget |
Total 60W |
|
PoE Supported |
Yes |
|
Concurrent ports |
Total 4 |
|
Fanless |
Yes |
|
Manageable |
No |
|
Grade |
Industrial |
|
Others |
|
|
Approval and Compliance |
CE/FCC |
|
Operating humidity |
0% RH ~ 95% RH |
|
Operating temperature |
-40°C ~ 75°C |
|
Storage humidity |
0% RH ~ 95% RH |
|
Storage temperature |
-40°C ~ 85°C |
|
Package Contents |
IGP-0432 |
|
Physical Specifications |
|
|
Dimensions (W x D x H) |
130 x 110 x 62 mm |
|
Product weight (kg) |
0.3 |
|
System specifications |
|
|
Backplane (Gbps) |
8 |
|
Indicators |
Power |
|
MAC address table |
8K |
|
Mount |
DIN rail mount |
|
Packet buffer |
5.95 Mpps |
|
Pin assignment and polarity |
1/2 (+), 3/6 (-) |
|
Port Configuration |
2 port 10/100/1000 Mbps RJ45 and 2 port Gigabit SFP |
|
Power consumption |
<5W |
|
Power input |
Redundant Dual DC 48V-57V |
|
Power Output |
Provides 2 PoE ports, up to 30W single port, Total PoE Budget 60W |
|
Power supply |
VDC 48~57V, (Power supply unit is to be ordered separately) |
|
Power supply included |
No |
|
Standards |
IEEE 802.3u 100-BASE-TX (Fast Ethernet) |
|
